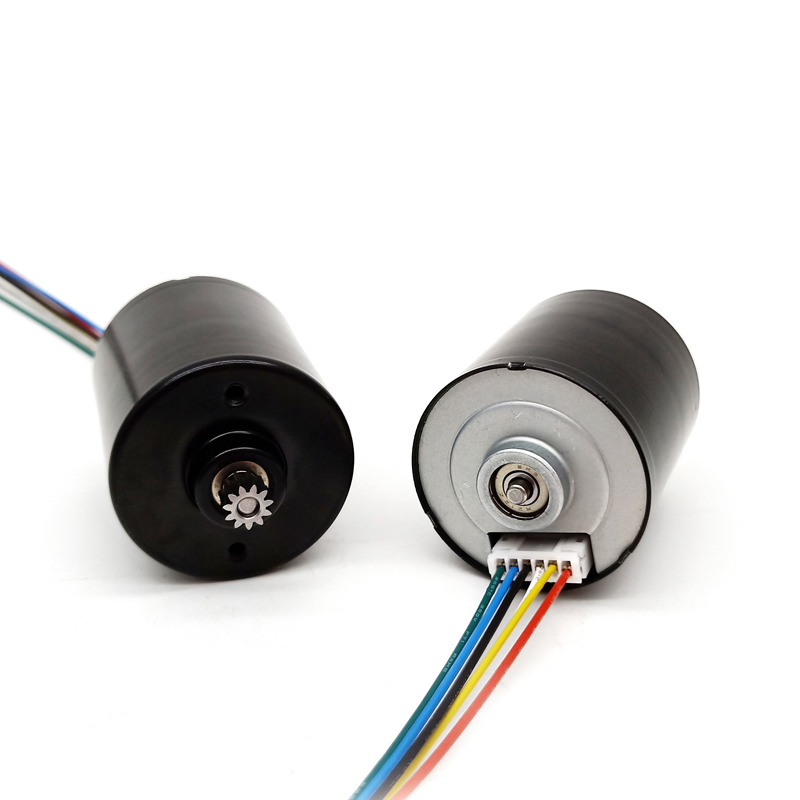

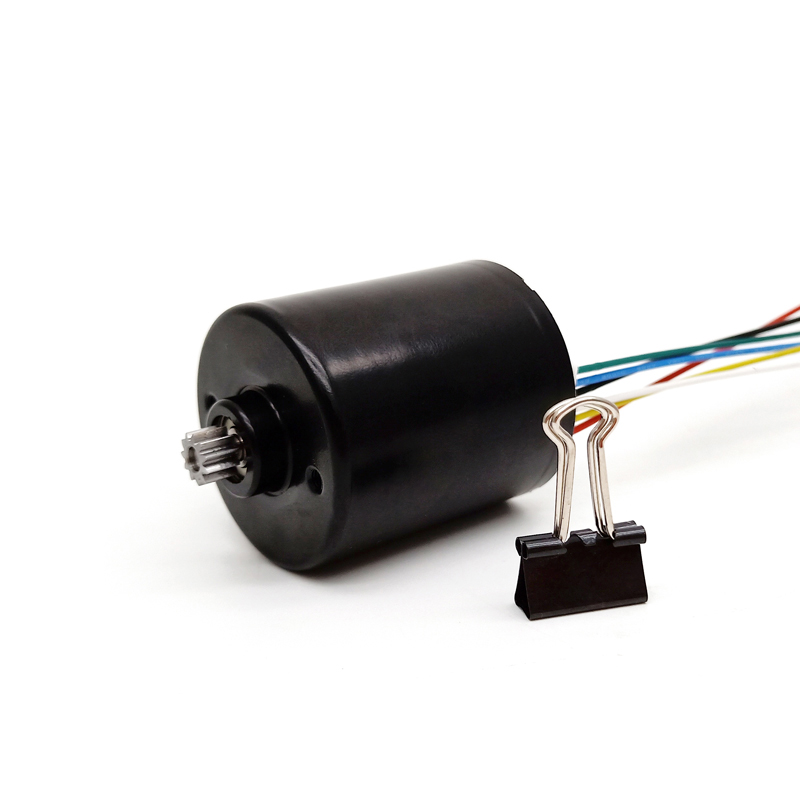

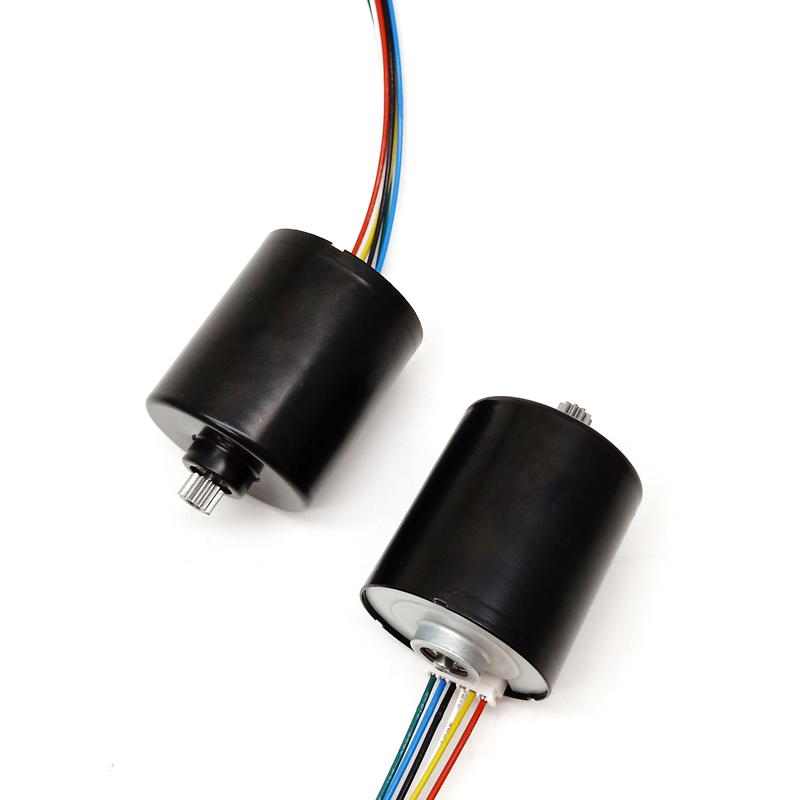

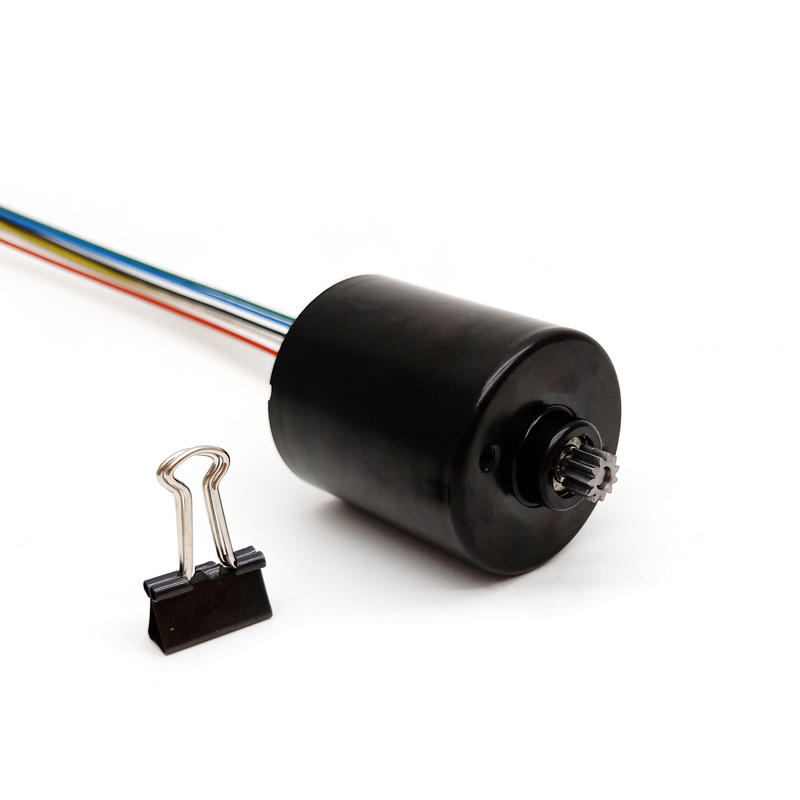

24v High Speed Bldc Motor 36mm Brushless Dc Motor 12v
Product Description
24v High Speed BLDC Motor 36mm Brushless DC Motor 12v
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.
| Model | Rated Voltage | Rated Speed | Output Power | No-load Speed | Rated Torque | Stall Torque | No-load Current | Rated Current | Stall Current |
|---|---|---|---|---|---|---|---|---|---|
| TFC3640-1250 | 12VDC | 4000 r/min | 6.2W | 5000 r/min | 150 g.cm | 600 g.cm | 750mA | 1000mA | 2.5A |
| TFC3640-1233 | 12VDC | 2400 r/min | 6.2W | 3300 r/min | 250 g.cm | 880 g.cm | 250mA | 1000mA | 2.5A |
| TFC3640-2433 | 24VDC | 2400 r/min | 7.4W | 3300 r/min | 300 g.cm | 1650 g.cm | 130mA | 500mA | 3.0A |

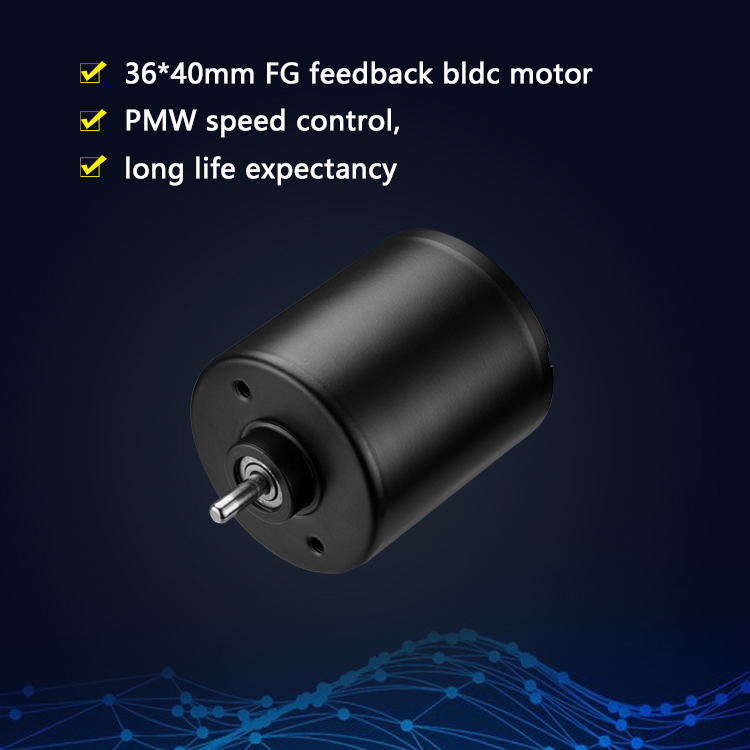

Main Features
- 36mm brushless motor
- Low noise, long life. Built-in drive. Power on, then work
- Reverse rotation and Brake control
- PWM Speed control and FG signal feedback
- Can be available with planetary gearbox
Product Applications Range
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Others Applications
| Category | Applications |
|---|---|
| Business Machines | Vending Machines, Printers, ATM, Copiers and Scanners |
| Camera and Optical | Video, Cameras, Projectors |
| Lawn and Garden | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
