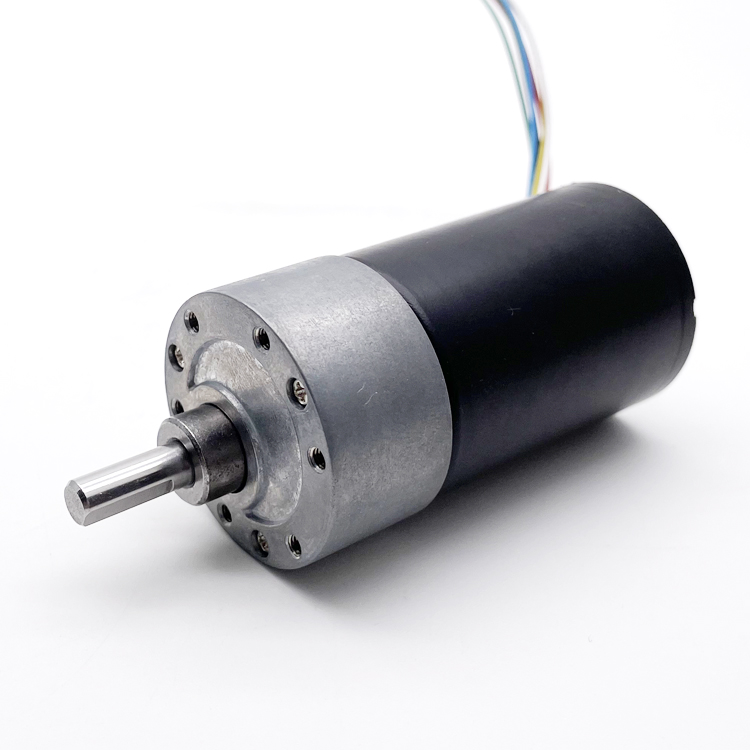

37mm Electric Bldc Motor 12v 24v Mini Dc Gear Motor
Product Description
Main Features
- 37mm spur gearbox plus TEC3650 & TEC3640 brushless motor
- Small size DC gear motor with low speed and big torque
- 37mm gear motor provides 1.0Nm torque and is highly reliable
- Suitable for small diameter, low noise, and high torque applications
- Reduction ratio options: 6, 10, 19, 30, 44, 56, 90, 131, 169, 270, 506, 810
Model Specifications: GM37-TEC3650
| Model | Rated Voltage | No-Load Speed | No-Load Current | Rated Speed | Rated Torque | Rated Current | Stall Torque | Stall Current | Output Power |
|---|---|---|---|---|---|---|---|---|---|
| TEC3650-2465 | 24VDC | 6500 r/min | 200mA | 5400 r/min | 200 g.cm | 1000mA | 1150 g.cm | 2A | 11.5W |
| TEC3650-2440 | 24VDC | 4000 r/min | 120mA | 3200 r/min | 200 g.cm | 600mA | 1000 g.cm | 2A | 6.6W |
| TEC3650-1245 | 12VDC | 4500 r/min | 150mA | 3500 r/min | 230 g.cm | 800mA | 820 g.cm | 2.5A | 8.3W |
Gear Ratio Characteristics
GM37-TEC3650-2465-xx Technical Parameters
| Reduction Ratio | 6 | 10 | 30 | 44 | 56 | 90 | 169 | 270 | 506 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 19 | 19 | 21.5 | 24 | 24 | 24 | 26.5 | 26.5 | 29 |
| No-load Speed (rpm) | 1000 | 650 | 215 | 145 | 110 | 70 | 38 | 24 | 12.5 |
| Rated Speed (rpm) | 830 | 540 | 180 | 122 | 95 | 65 | 34 | 22 | 11 |
| Rated Torque (kg.cm) | 0.7 | 1.2 | 3.6 | 5.2 | 6.5 | 10 | 10 | 10 | 10 |
| Max. Tolerance Torque (kg.cm) | 2 | 5 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
GM37-TEC3650-2440-xx Technical Parameters
| Reduction Ratio | 6 | 10 | 30 | 44 | 56 | 90 | 169 | 270 | 506 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 19 | 19 | 21.5 | 24 | 24 | 24 | 26.5 | 26.5 | 29 |
| No-load Speed (rpm) | 620 | 380 | 130 | 90 | 70 | 43 | 23 | 14.5 | 7.5 |
| Rated Speed (rpm) | 500 | 320 | 100 | 72 | 55 | 36 | 19 | 12.5 | 6.5 |
| Rated Torque (kg.cm) | 0.7 | 1.2 | 3.6 | 5.2 | 6.5 | 10 | 10 | 10 | 10 |
| Max. Tolerance Torque (kg.cm) | 2 | 5 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
GM37-TEC3650-1245-xx Technical Parameters
| Reduction Ratio | 6 | 10 | 30 | 44 | 56 | 90 | 169 | 270 | 506 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 19 | 19 | 21.5 | 24 | 24 | 24 | 26.5 | 26.5 | 29 |
| No-load Speed (rpm) | 710 | 430 | 150 | 100 | 80 | 50 | 27 | 17 | 9 |
| Rated Speed (rpm) | 580 | 350 | 115 | 80 | 62 | 39 | 21 | 13 | 7 |
| Rated Torque (kg.cm) | 0.9 | 1.6 | 4.1 | 6.1 | 7.7 | 10 | 10 | 10 | 10 |
| Max. Tolerance Torque (kg.cm) | 3.5 | 5.7 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Applications
Business Machines
ATM, Copiers, Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food & Beverage
Beverage Dispensing, Hand Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment & Gaming
Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies
Home Ventilation, Air Purifiers, Dehumidifiers, Range Hoods, Washers, Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool & Spa, Showers, Smart Metering, Coffee Machines.
Lawn & Garden
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care & Power Tools
Hair Cutting, Hair Care, Massagers, Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera & Optical
Video, Cameras, Projectors.
Product Application Fields
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Other Applications
| Category | Applications List |
|---|---|
| Business Machines | Vending Machines, Printers, ATM, Copiers and Scanners |
| Camera & Optical | Video, Cameras, Projectors |
| Lawn & Garden | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
