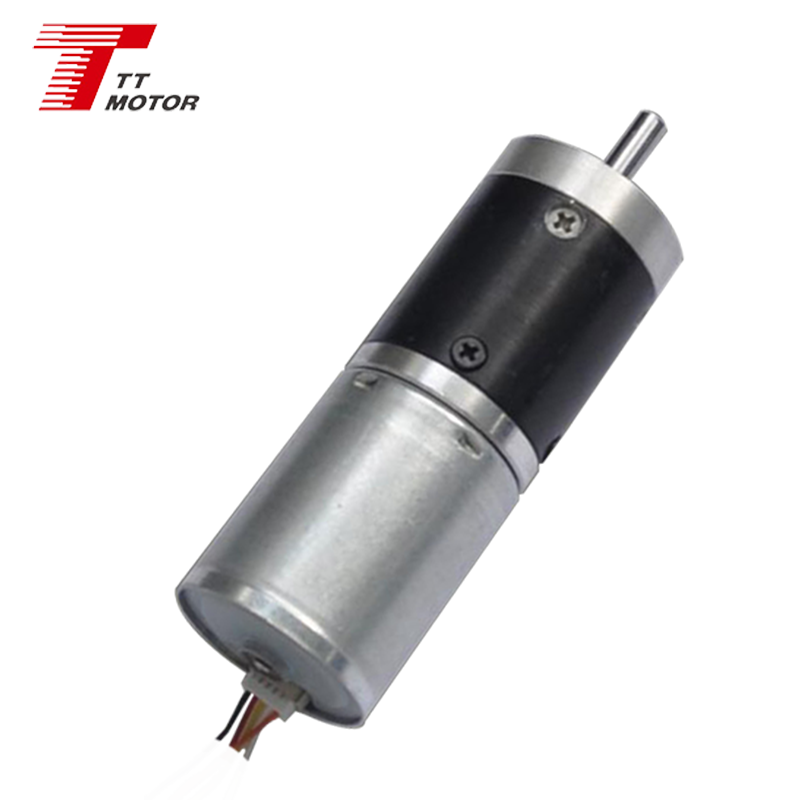

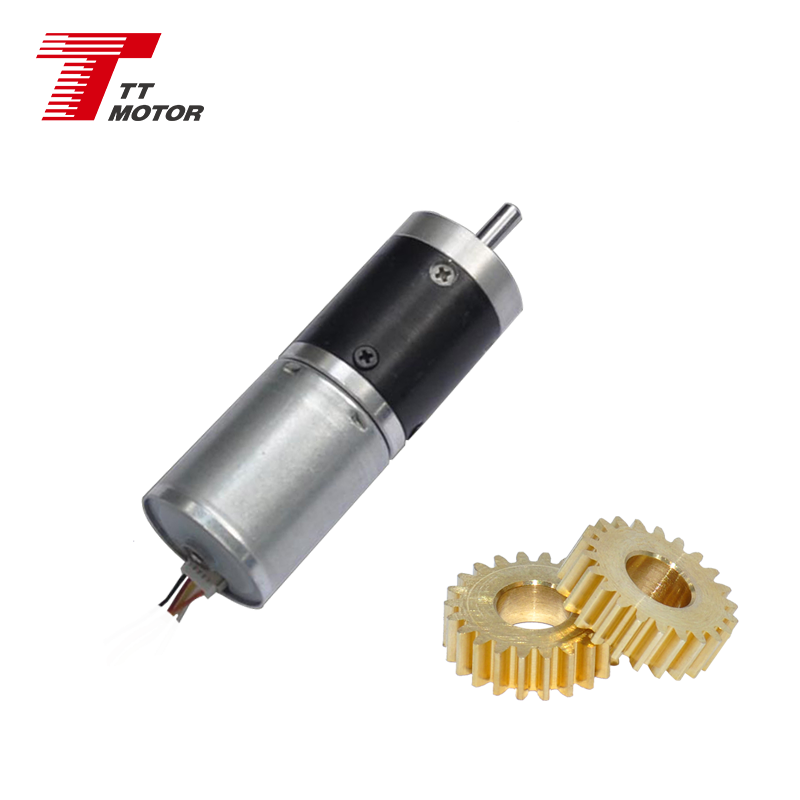

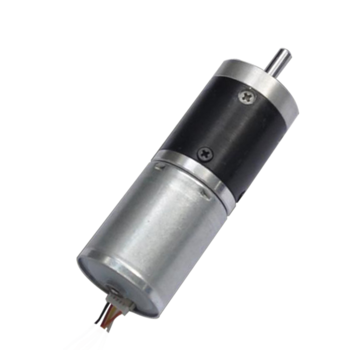

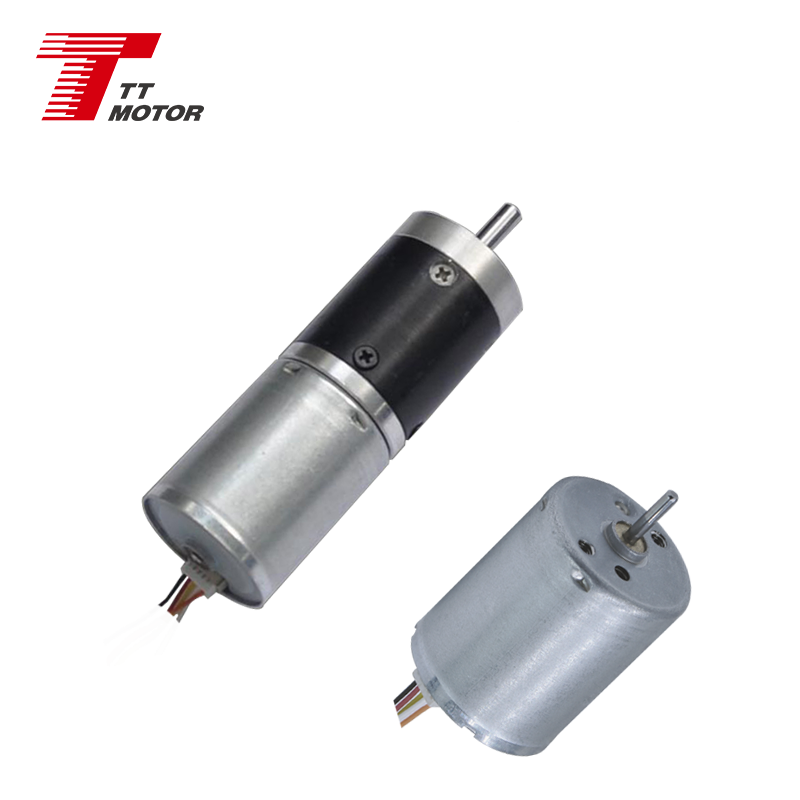

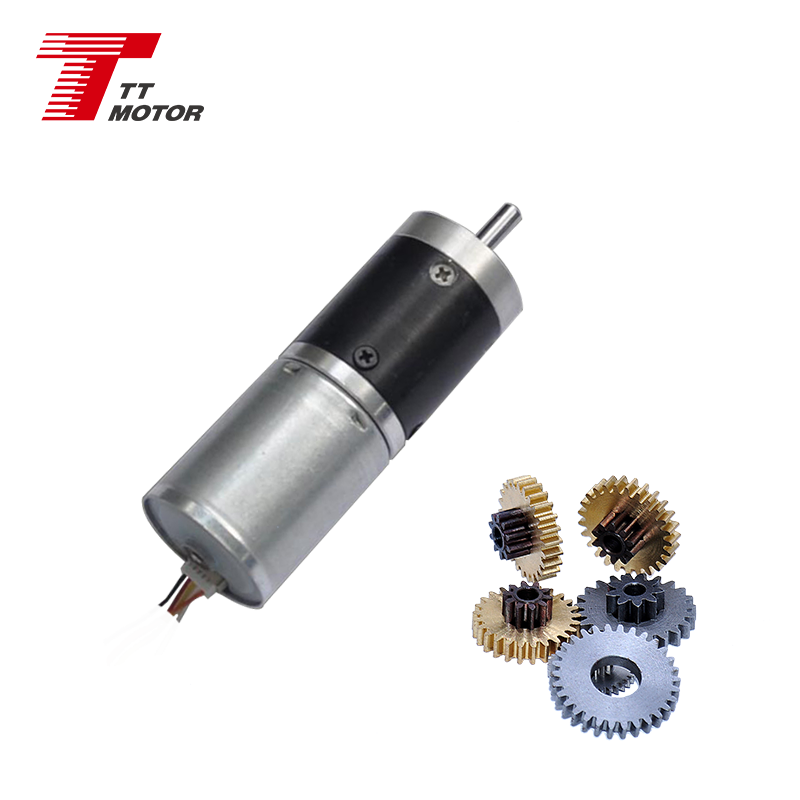

GMP24-TEC2430 24mm Geared Motor Electric 12v Brushless Motor
Product Description
GMP24-TEC2430 24mm Geared Motor Electric 12v Brushless Motor
Product Description
- 24mm planetary gearbox plus 24mm brushless motor
- Small size dc gear motor with low speed and big torque
- 24mm gear motor provide 0.5Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application
- Reduction ratio: 4, 14, 19, 27, 51, 71, 100, 139, 189, 264, 369, 516, 720
Motor Performance Parameters
| Motor Model No. | Rated Voltage | No-load Speed | No-load Current | Rated Speed | Rated Torque | Rated Current | Output Power | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|---|---|
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A | |
| TEC2430-1255 | 12 | 5500 | 90 | 4500 | 50 | 330 | 2.3 | 270 | 1.4 |
| TEC2430-2455 | 24 | 5500 | 50 | 4500 | 50 | 180 | 2.3 | 270 | 0.75 |
Gearbox Reduction Ratio Specifications
| Reduction Ratio | 19 | 27 | 51 | 71 | 100 | 189 | 264 | 369 | 516 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 58.8 | 58.8 | 63.8 | 63.8 | 63.8 | 68.8 | 68.8 | 68.8 | 68.8 |
| No-load Speed (rpm) | 280 | 195 | 105 | 75 | 55 | 29 | 21 | 15 | 11 |
| Rated Speed (rpm) | 250 | 180 | 95 | 68 | 48 | 25 | 18 | 13 | 9 |
| Rated Torque (kg.cm) | 0.6 | 1.0 | 1.4 | 2.0 | 2.8 | 5.0 | 5.0 | 5.0 | 5.0 |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Other Applications
| Category | Applications | |||
|---|---|---|---|---|
| Business Machines | Vending Machines | Printers | ATM | Copiers and Scanners |
| Camera and Optical | Video | Cameras | Projectors | - |
| Lawn and Garden | Lawn Mowers | Snow Blowers | Trimmers | Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
