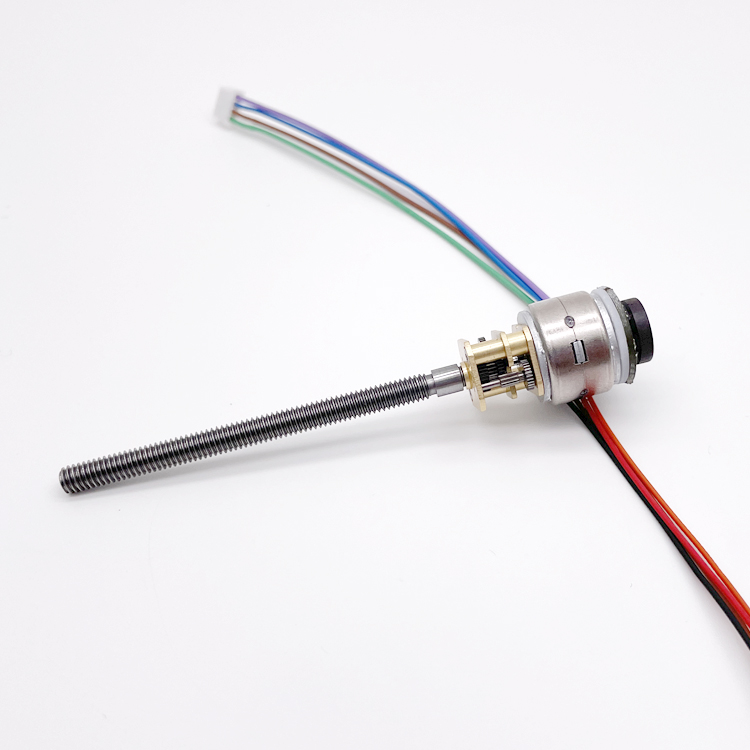

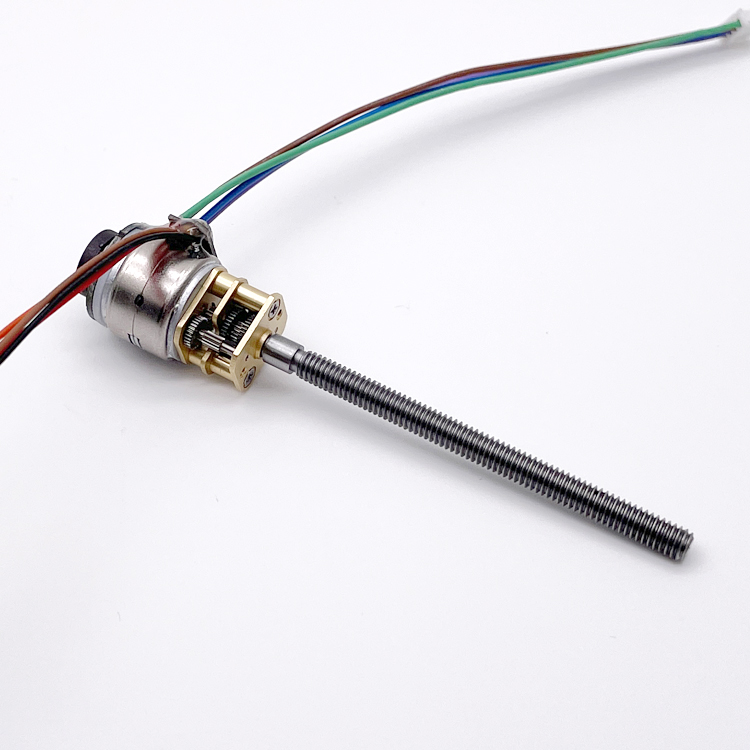

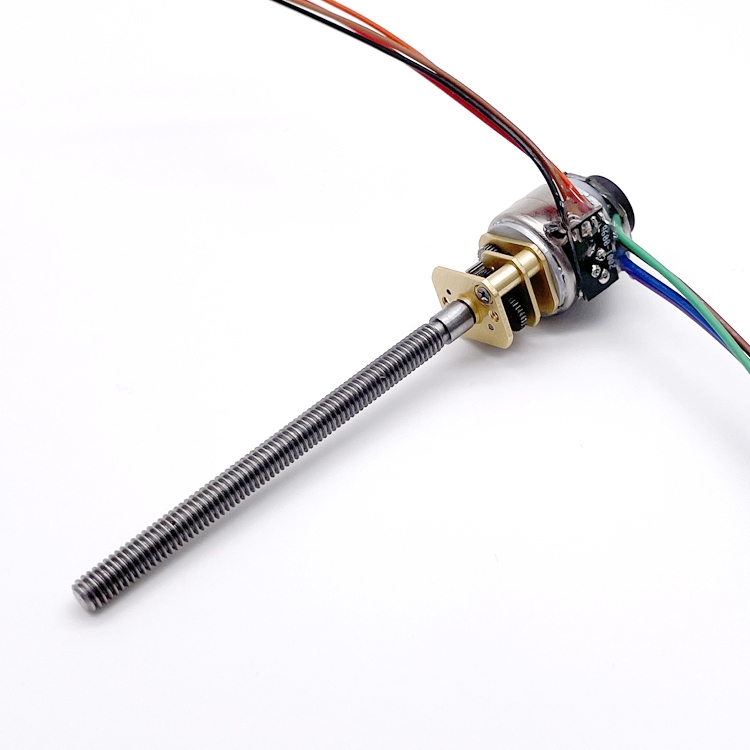

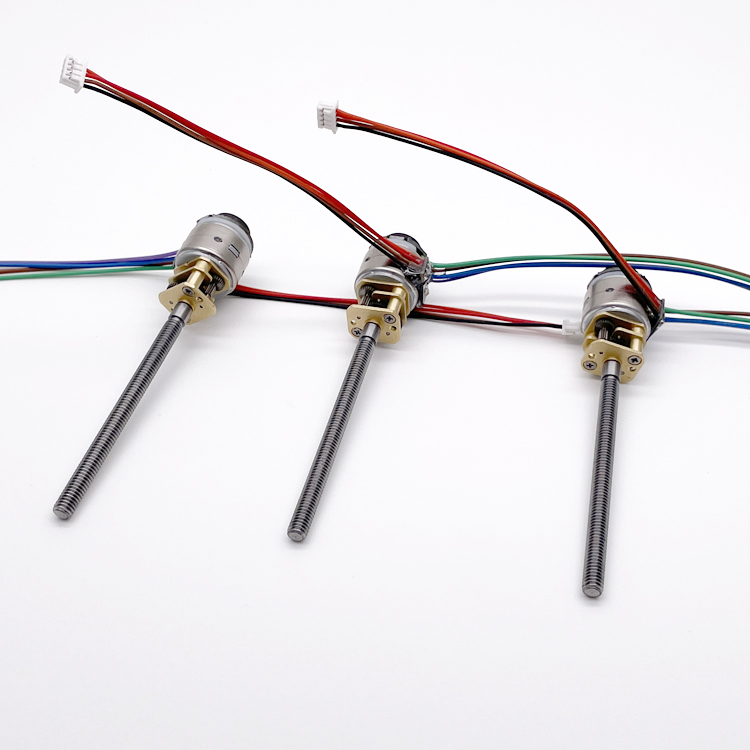

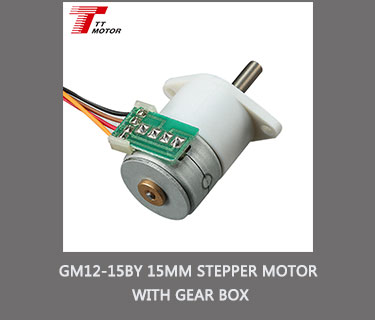

15mm Permanent Magnet Geared Motor Dc 5v Micro Stepper Gear Motor With Encoder
Product Description
15mm Permanent Magnet Geared Motor DC 5V Micro Stepper Gear Motor with Encoder
⚙️
Compact Design: 12*10mm gearbox plus 15mm stepping motor for space-constrained applications.
💪
High Torque: 12mm gear motor providing up to 0.05Nm torque with reliable performance.
🔇
Low Noise: Engineered for low noise and big torque output.
Available Reduction Ratios: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380
Technical Specifications
| Model Number | Rated Voltage | Phase / Step Angle | Resistance / Current | Holding Torque | Gear Ratio / Rate |
|---|---|---|---|---|---|
| GM12-15BY-30 | 5VDC | 2 Phase / 18° | 10Ω / 500mA | 500g.cm | 1/30 (800pps) |
| GM12-15BY-50 | 5VDC | 2 Phase / 18° | 10Ω / 500mA | 700g.cm | 1/50 (850pps) |
| GM12-15BY-110 | 5VDC | 2 Phase / 18° | 10Ω / 500mA | 1050g.cm | 1/110 (850pps) |
Wide Range Applications
🤖
Automatic door operators, robots, electrical controlled valves, and medical services such as oxygen machines.
📸
Cameras, electrical curtains, grass cutters, and automatic energy-saving bath systems.
| Industry | Target Applications | ||
|---|---|---|---|
| Business Machines | Vending Machines | Printers / ATM | Copiers & Scanners |
| Optical Equipment | Video Cameras | Projectors | Precision Optics |
| Garden & Outdoor | Lawn Mowers | Snow Blowers | Trimmers & Blowers |
Quality Assurance & Certifications
Our manufacturing processes adhere to the highest international standards, ensuring reliability and longevity for every motor produced.
ISO9001 | SGS | National High-Tech Enterprise
Manufacturing Excellence
Specializing in micro motors, gear motors, and high-precision parts since 2000. With 98% of output exported worldwide, our products serve various industries including automobiles, home appliances, and industrial tools.
Trusted by Global Leaders: Partnered with major brands like NIKE, FLEXTRONICS, STANLEY, and more.
Standardized Packing & Delivery
Estimated Shipping Times:
- DHL: 3-5 working days
- UPS/TNT: 5-7 working days
- FedEx: 7-9 working days
- Sea Freight: Depends on destination country
Customer Feedback
"Excellent quality, better price, good service, and on time delivery."
Frequently Asked Questions
How can I place an order for the geared motors?
You can start by sending us an inquiry. We will provide a quotation, negotiate details, confirm samples, and proceed with production once the contract is signed.
Is it possible to request sample orders?
Yes, samples are available. Please reach out for specific details. Note that sample fees are generally refunded upon placing a formal mass production order.
What are the available shipping methods?
We offer various shipping options including DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight to suit your budget and timeline.
How long does the production and delivery take?
Production time typically ranges from 15-25 working days, depending on the order quantity and specific customization requirements.
What are the accepted payment methods?
We accept T/T, PayPal, and other major payment methods. Usually, a 30-50% deposit is required, with the remaining balance due before shipping.
What should I do if my package has missing products?
Please contact our support team immediately. We will cross-reference your order with our package logs to resolve any discrepancies.
