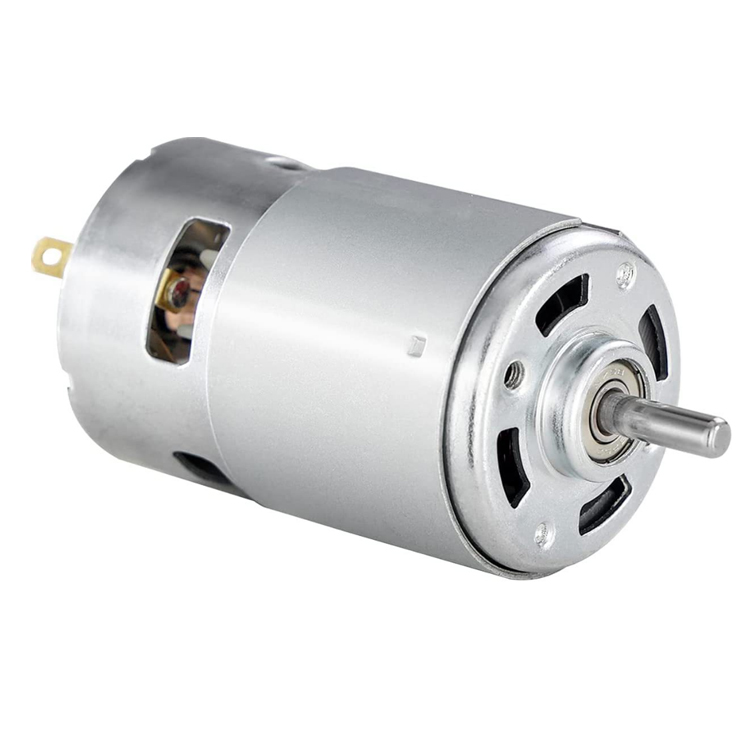

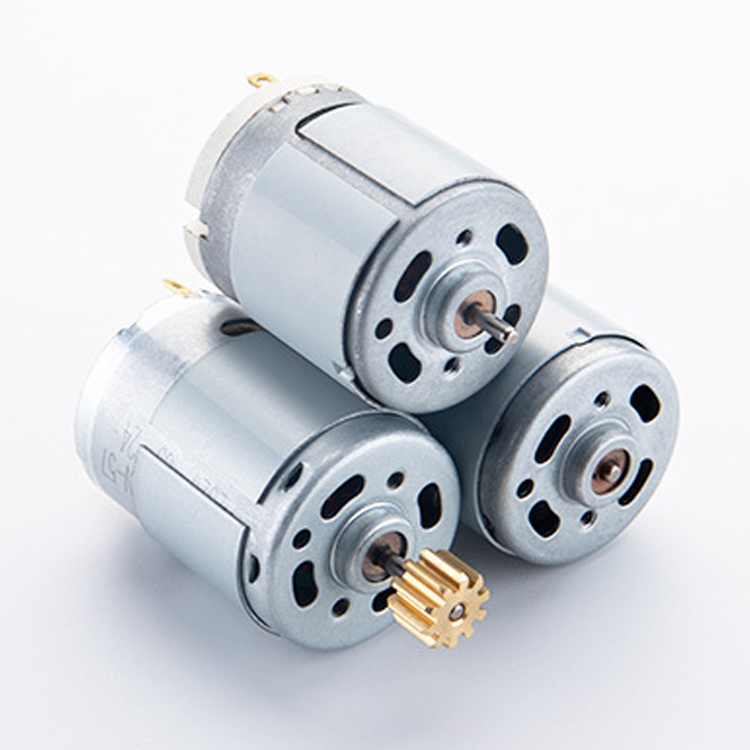

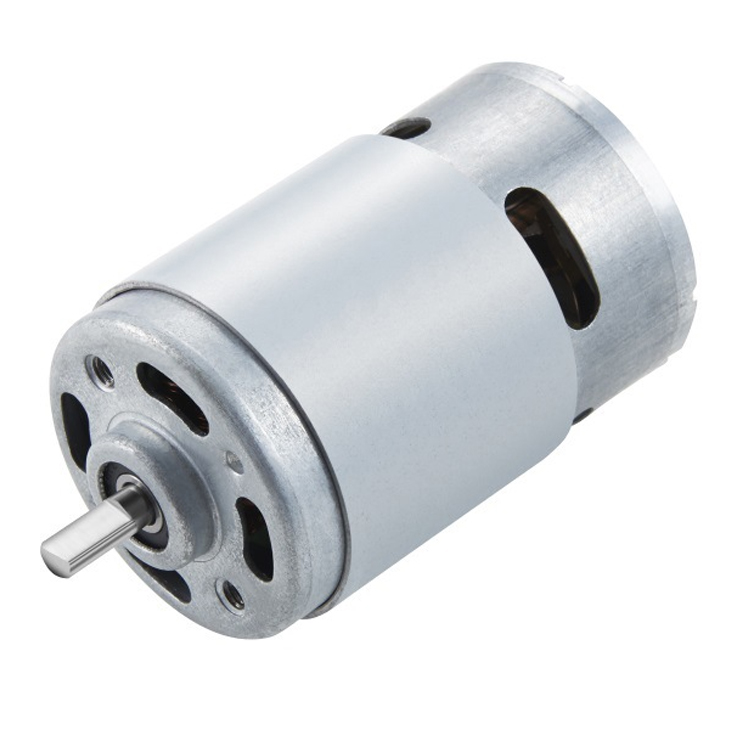

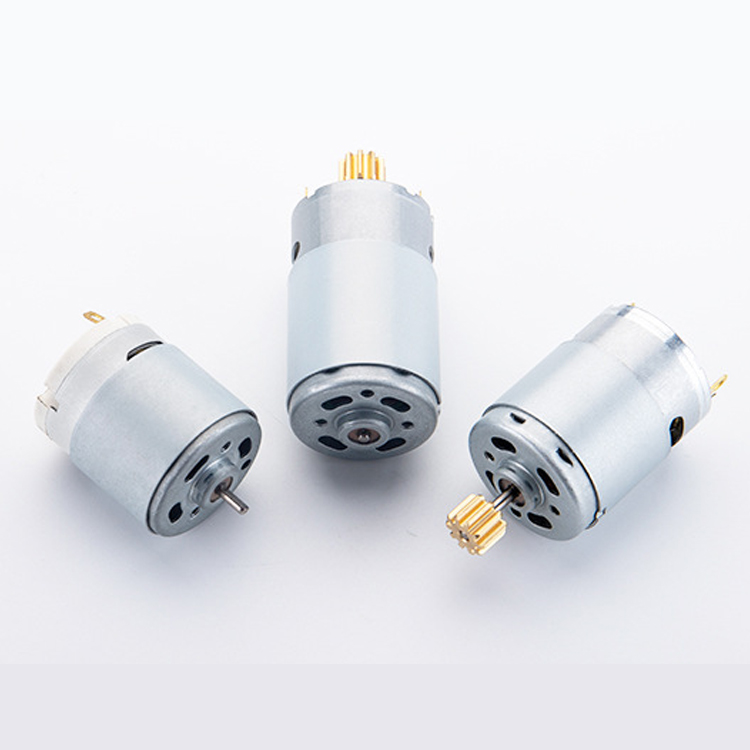

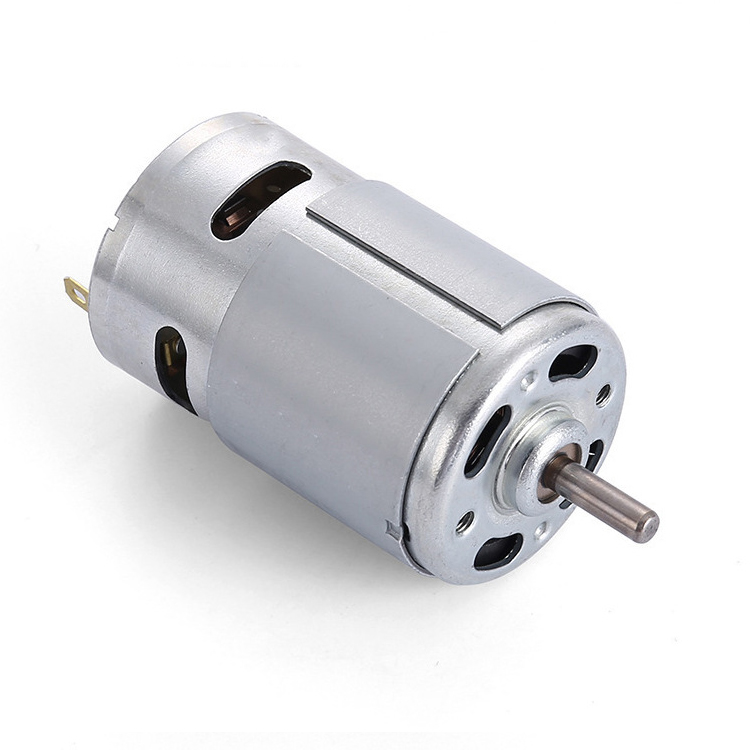

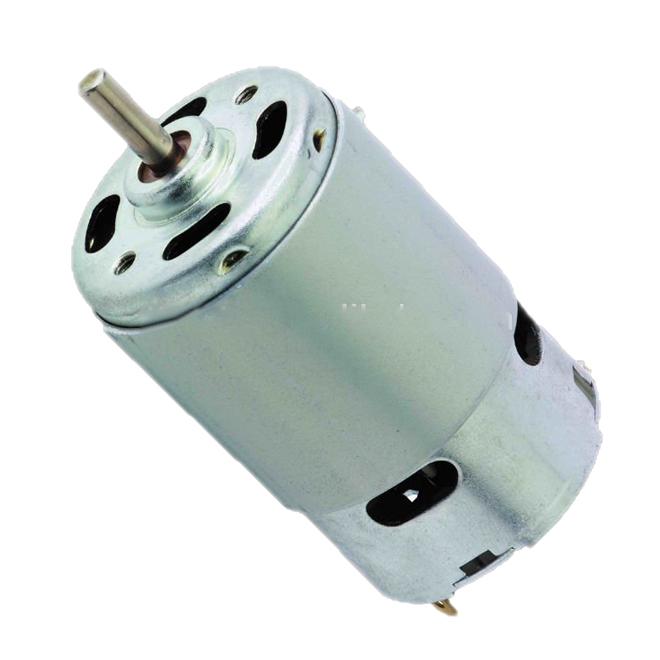

Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Product Description
Key Features & Technical Specifications
- Typical Applications: Printer, Copy Machine, Sewing Machine, Water Pump, Hair Dryer, Circular Saw, String Trimmer, etc.
- High efficiency, less noise, and low current 24V DC motor performance.
- Can match with 45mm planetary gearbox, or 51mm gear box.

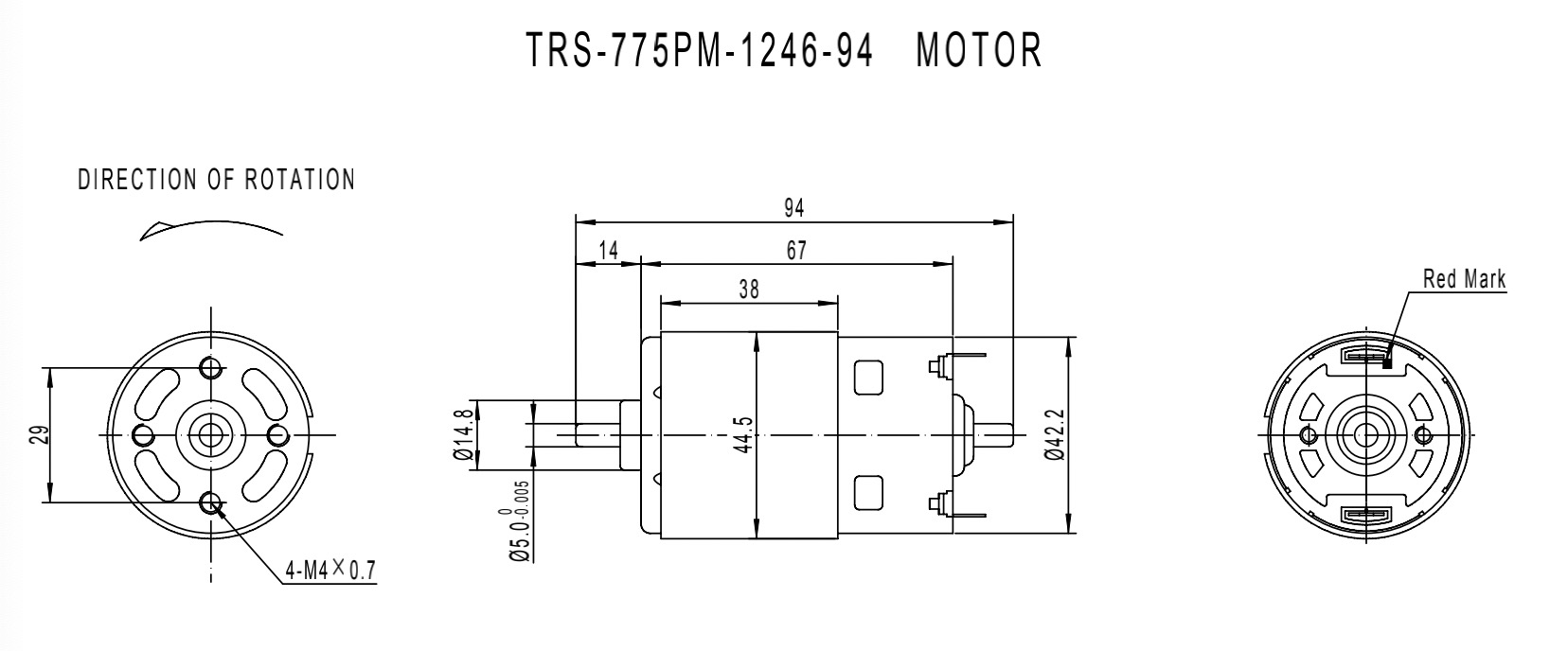

- Shaft: 5.0mm diameter, shaft length 14.5 / 19.5mm.
- Mounting holes: 2-M4.0x0.7.
- Double shaft for encoder, 12ppr.
- Samples can be provided for your test.
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| V | rpm | A | rpm | A | mN.m | g.cm | w | mN.m | g.cm | A | |||
| TRS-775PM | 2765 | 6.0-30.0 | 24.0 | 7600 | 0.37 | 5810 | 0.22 | 73.53 | 750 | 44.7 | 312.35 | 3186 | 8.23 |
| 4045 | 6.0-15.0 | 12.0 | 4600 | 0.60 | 3500 | 4.30 | 84.31 | 860 | 36.6 | 352.94 | 3600 | 16.1 | |
Frequently Asked Questions (FAQ)
What are the typical applications for the RS-555 and RS-775 DC motors?
These high RPM brushed DC motors are widely used in devices such as printers, copy machines, sewing machines, water pumps, hair dryers, circular saws, string trimmers, and similar tools or appliances.
Can these motors be paired with gearboxes?
Yes, both motor models can be configured and matched with a 45mm planetary gearbox or a 51mm gearbox to fit your specific torque and speed requirements.
What are the standard shaft configurations available?
The motors feature a 5.0mm diameter shaft with standard lengths of 14.5mm or 19.5mm. Additionally, a double shaft configuration supporting a 12ppr encoder is available.
What voltage range do the TRS-775PM motors operate on?
Depending on the sub-model: The TRS-775PM-2765 operates within 6.0V - 30.0V (nominal 24.0V), while the TRS-775PM-4045 operates within 6.0V - 15.0V (nominal 12.0V).
Do these motors provide good efficiency and noise control?
Yes, these DC brushed motors are specifically engineered for high efficiency, reduced operating noise, and low current consumption during operation.
Can I obtain samples for evaluation?
Yes, samples can be provided upon request so you can conduct testing and verify compatibility with your specific application setup.
