High Torque Low Rpm 12v 24v Brushless Dc Gear Motor
Product Description

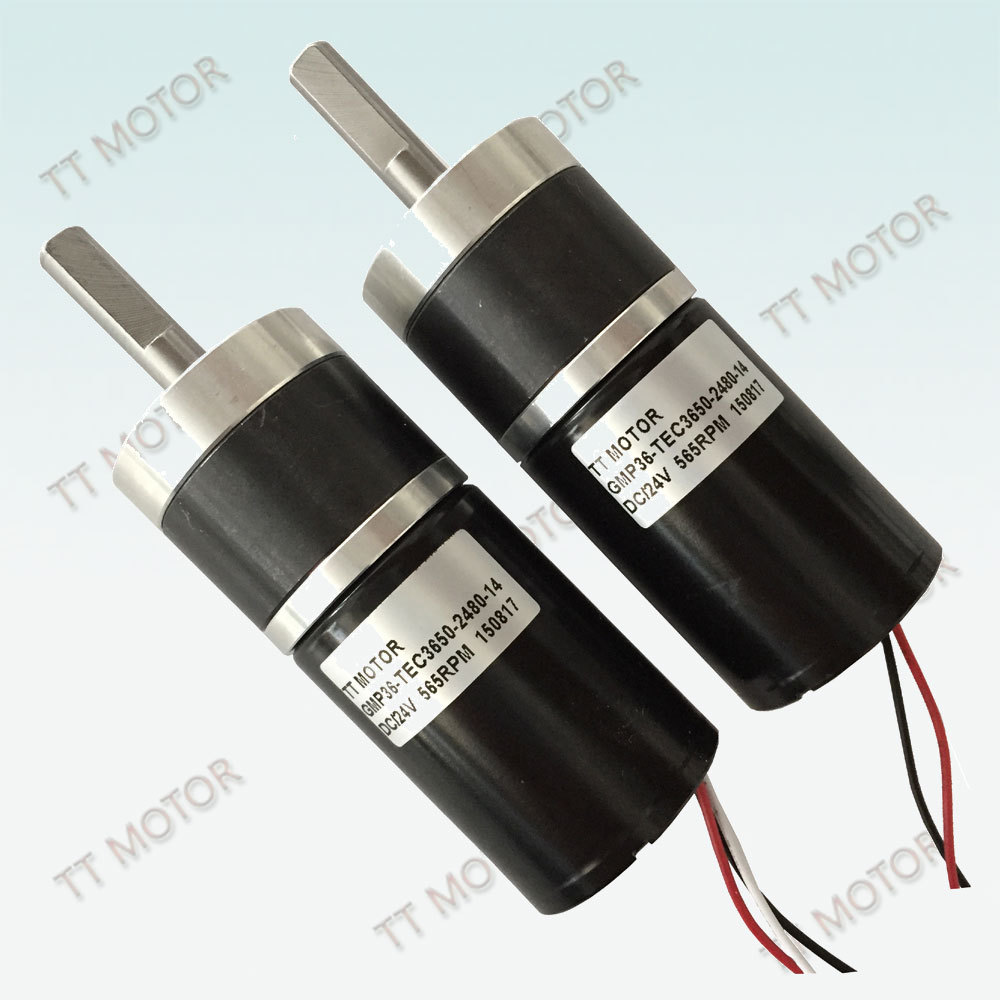

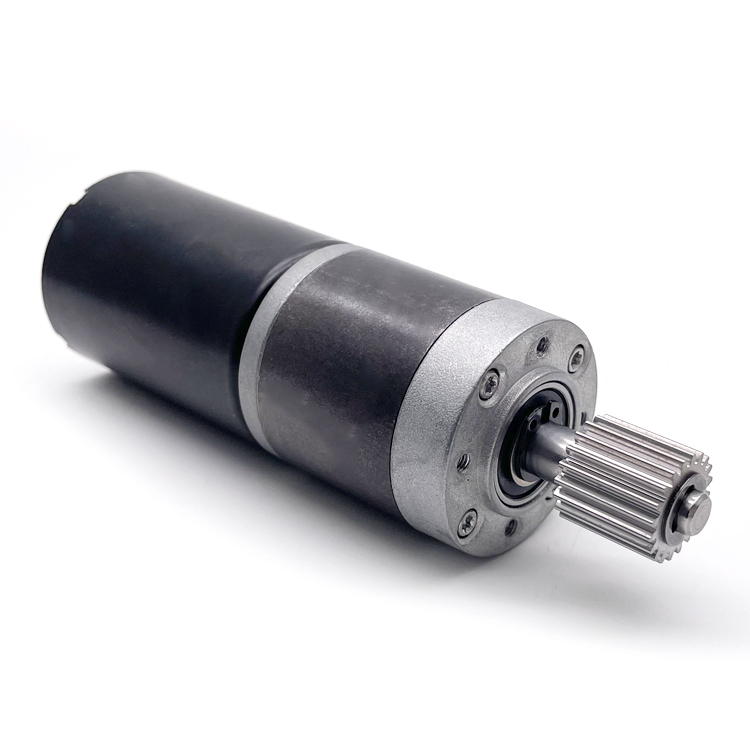

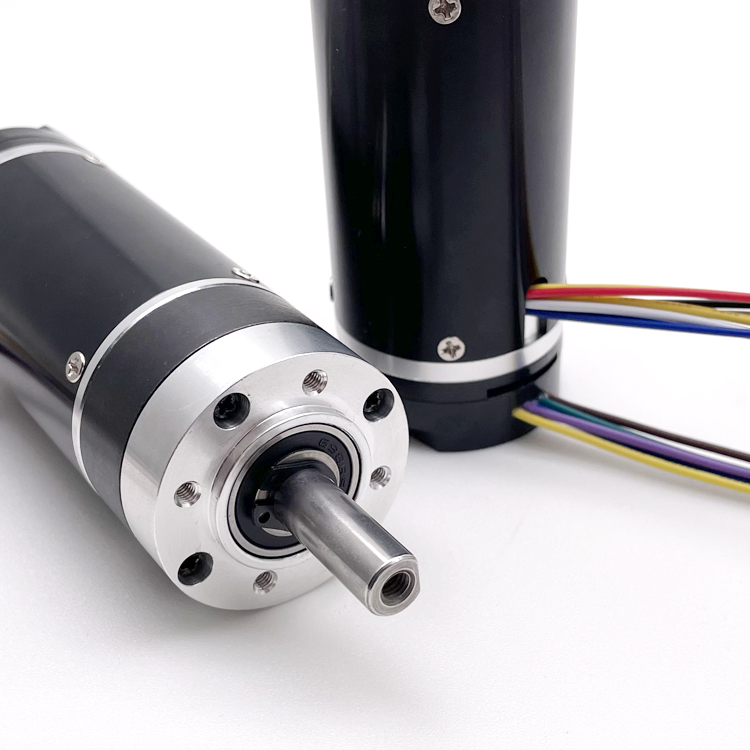

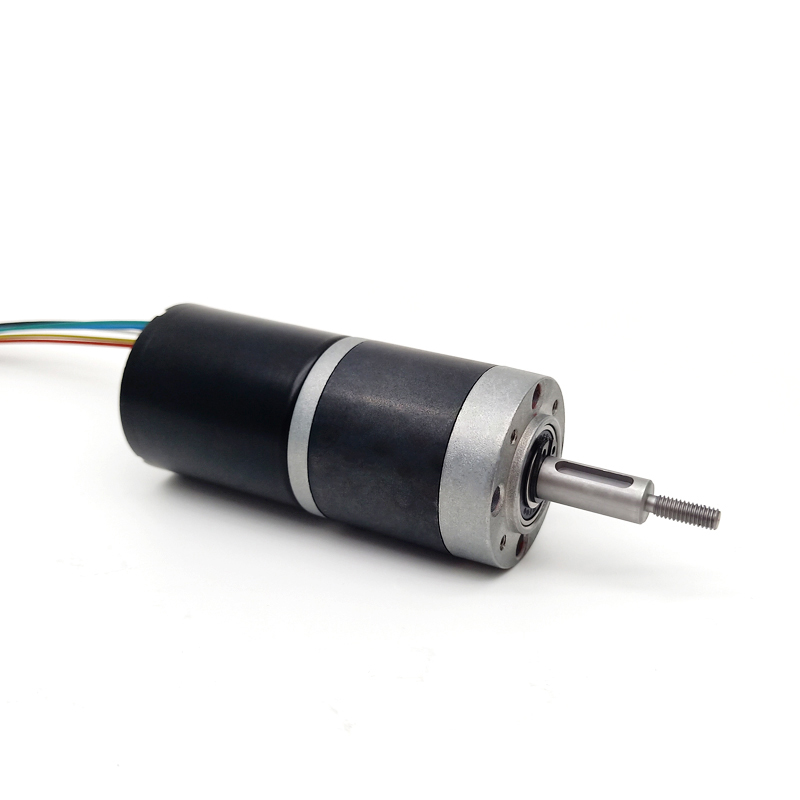

High Torque Low RPM 12V 24V Brushless DC Gear Motor
Main Features
- 36mm Planetary reducer plus TEC3650 & 3640 brushless motor
- Small size DC gear motor with low speed and big torque
- 36mm gear motor provide 3.0Nm torque max and more reliable
- Suitable to small diameter, low noise and big torque application
- Reduction ratios: 4, 14, 19, 27, 51, 71, 100, 139, 189, 264, 369, 516, 720

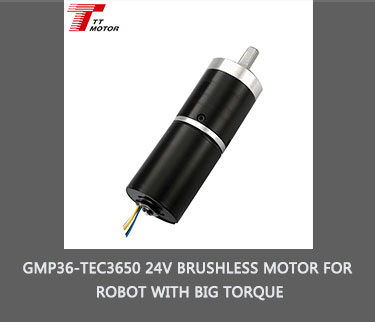

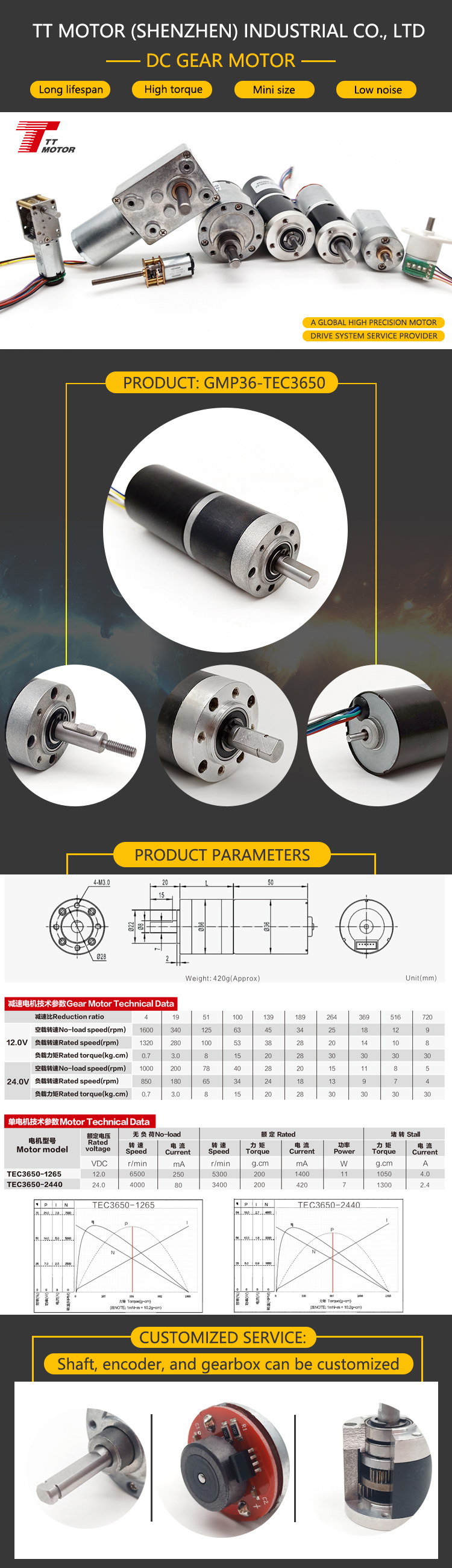

Technical Specifications - Model: GMP36-TEC3650
| Model | Rated Voltage | No-load Speed | Rated Speed | Rated Torque | Stall Torque |
|---|---|---|---|---|---|
| TEC3650-2465 | 24VDC | 6500r/min | 5400r/min | 200g.cm | 1150g.cm |
| TEC3650-2440 | 24VDC | 4000r/min | 3200r/min | 200g.cm | 1000g.cm |
| TEC3650-1245 | 12VDC | 4500r/min | 3500r/min | 230g.cm | 820g.cm |
Gearbox Performance Data
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 26 | 33.5 | 40.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| Rated torque (kg.cm) | 0.6 | 2.7 | 6.0 | 12 | 16.6 | 22.5 | 30 | 30 | 30 |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, and more.
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
Company Overview
Specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools. With 98% of output exported worldwide, we are known for dependability and quality.
Packing & Delivery
Standard export packing ensures safe transit of your precision motors.
Estimated Shipping Time:
- DHL: 3-5 working days
- UPS/TNT: 5-7 working days
- FedEx: 7-9 working days
- EMS: 12-15 working days
- Sea Freight: Depends on destination country
