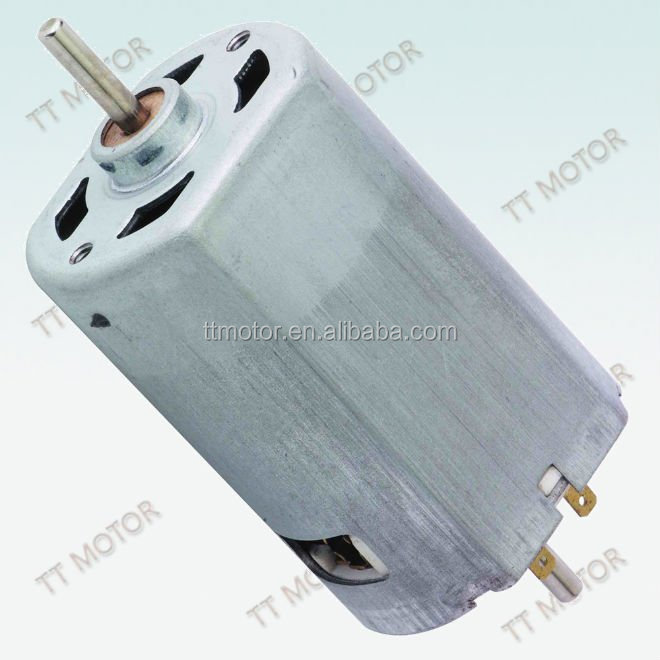

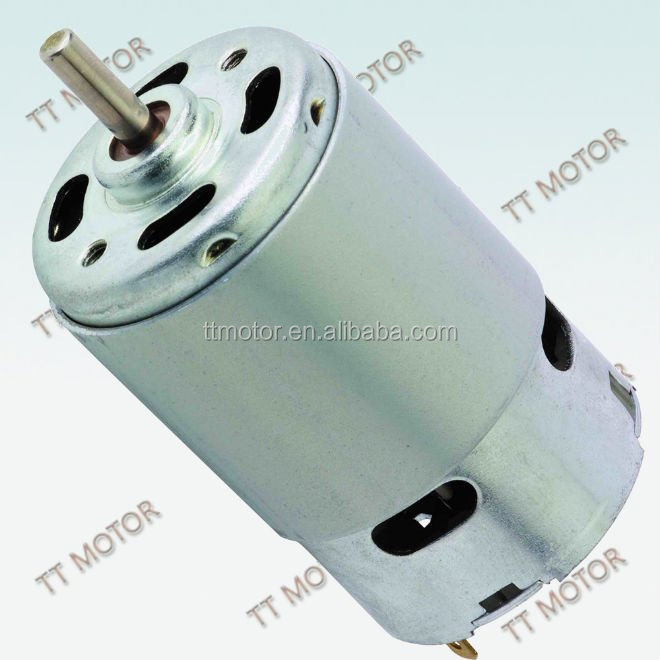

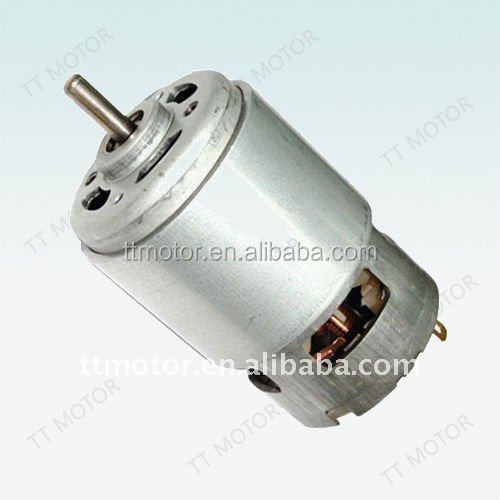

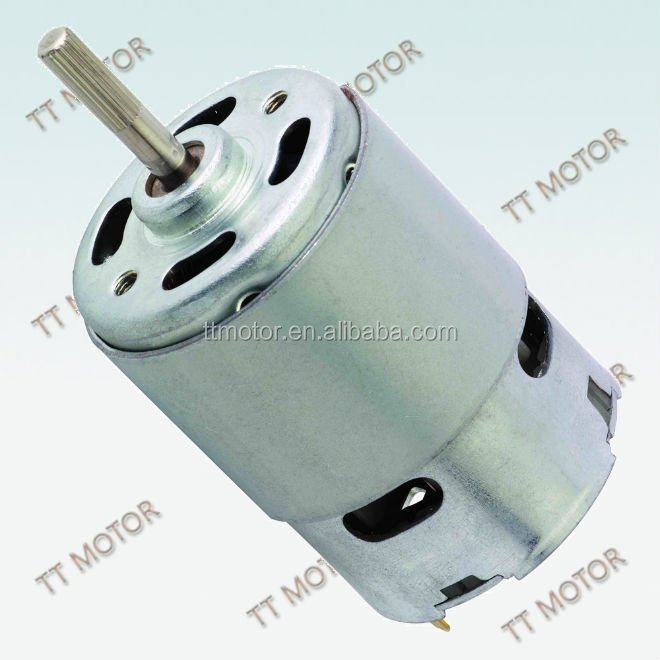

TRS-550PM or 24v Dc Motor
Product Description
24v dc motor, TRS-550PM
Voltage
120V
Speed
18000 RPM
Torque
3512g.cm
Performance
Low current, noise, no spark, no vibration
Typical Applications
Ride-on Toy, Grass trimmer, Air Compressor, Drill
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| V | r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | |||
| TRS-550PM | 35100 | 3.0-18.0 | 12.0 | 5200 | 0.25 | 4330 | 1.60 | 29.41 | 300 | 13.3 | 176.47 | 1800 | 8.32 |
| 6530 | 6.0-12.0 | 12.0 | 18000 | 1.30 | 16100 | 7.15 | 41.18 | 420 | 69.0 | 344.31 | 3512 | 52.0 | |
Frequently Asked Questions
Q: What is the operating voltage range of the TRS-550PM motor?
The motor is designed with a nominal voltage of 12.0V and operates efficiently within voltage ranges of 3.0V - 18.0V (model 35100) or 6.0V - 12.0V (model 6530).
Q: What is the maximum speed capacity under no-load conditions?
Under no-load conditions at 12.0V nominal voltage, the TRS-550PM (6530) can reach maximum speeds of up to 18,000 RPM.
Q: What are the typical applications of the TRS-550PM motor?
This motor is widely used in high-demand items such as ride-on toys, grass trimmers, air compressors, drills, and other electronic tools.
Q: Does this motor produce high noise or vibration?
No, the TRS-550PM is engineered specifically to ensure low current draw, minimal noise output, spark-free operation, and no unwanted vibrations during usage.
Q: What is the maximum stall torque that this motor can achieve?
The motor provides high-performance output, reaching a maximum stall torque of up to 3512 g.cm (344.31 mN.m) under standard operating conditions.
