TT Custom Manufacturer 10mm 15mm 20mm 35mm 3.3V 5V 6V 12V Stepper Motor Mini Stepping Motor Micro Stepper Motor Dc Electric
Product Description

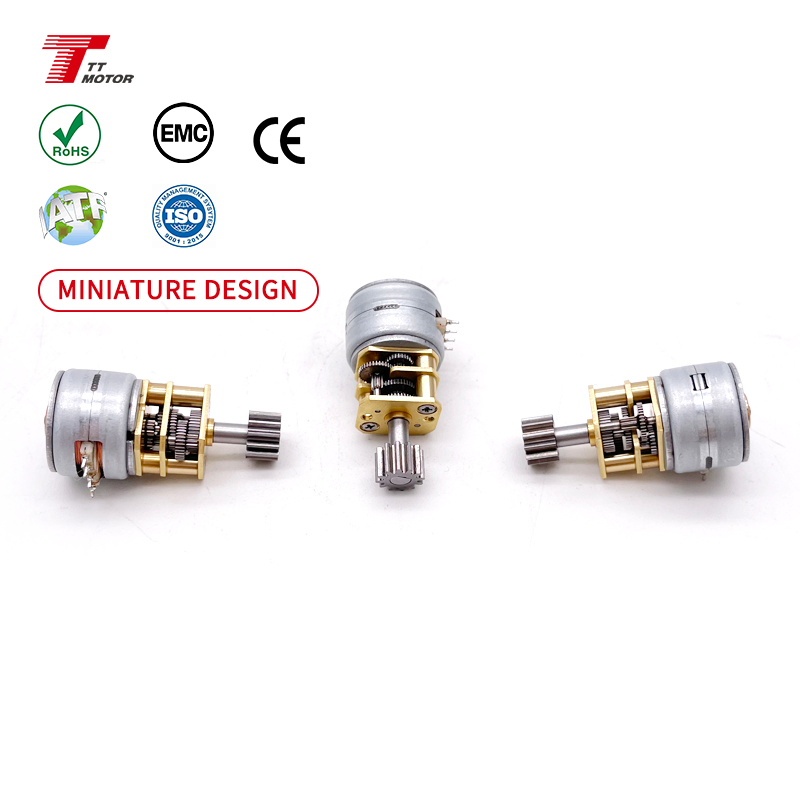

GM12-15BY 15mm DC Gear Motor 5V
Main Features
- 12*10mm gearbox plus 15mm dc gear motor 5v
- Small size dc gear motor with low speed and big torque
- 12mm gear motor provide 0.05Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application
- Reduction ratio: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380

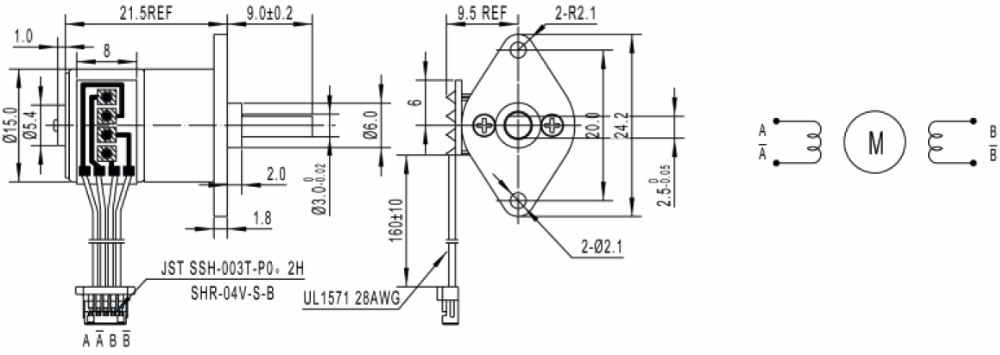

Technical Specifications
| Model | Basic Parameters | Performance Specifications |
|---|---|---|
| GM12-15BY-30 | Rated voltage: 5VDC No. of Phase: 2 Step Angle: 18° Gear Ratio: 1/30 |
Resistance: 10Ω Holding Torque: 500g.cm Current: 500mA Pull in Rate: 800pps |
| GM12-15BY-50 | Rated voltage: 5VDC No. of Phase: 2 Step Angle: 18° Gear Ratio: 1/50 |
Resistance: 10Ω Holding Torque: 700g.cm Current: 500mA Pull in Rate: 850pps |
| GM12-15BY-110 | Rated voltage: 5VDC No. of Phase: 2 Step Angle: 18° Gear Ratio: 1/110 |
Resistance: 10Ω Holding Torque: 1050g.cm Current: 500mA Pull in Rate: 850pps |
Professional Manufacturing & Quality Control

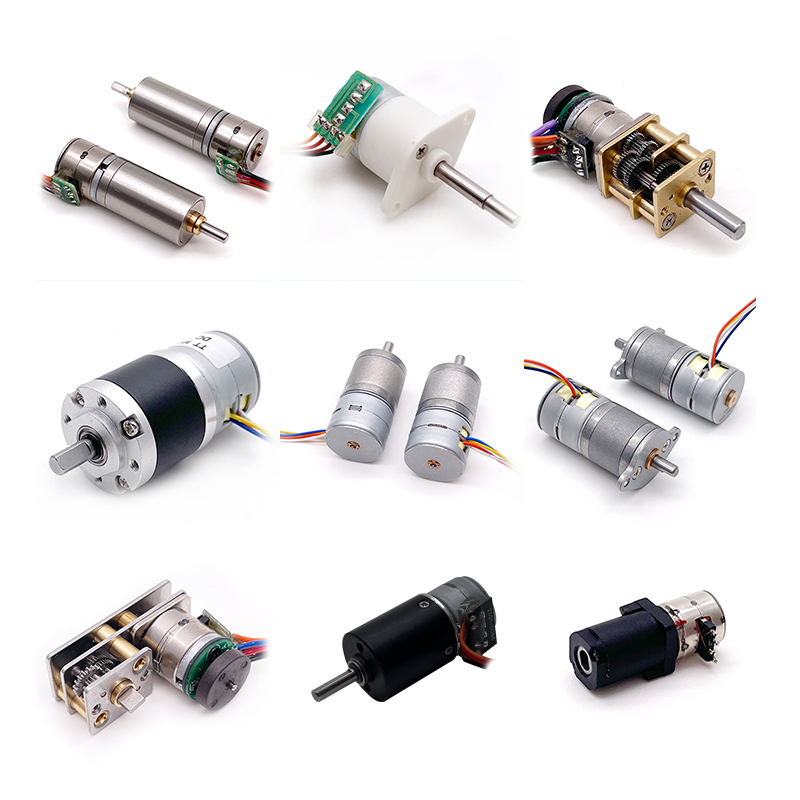

We have been specializing in DC Gear Motors, Brushless DC Motors, Stepper Motors, and Coreless Motors since 2006. Our motors are designed to be quiet, high torque, and durable with numerous size options. They are widely used in robotics, electric vehicles, pumps, medical equipment, home and industrial appliances, and are exported all over the world.
Our manufacturing facility has obtained ISO9001:2015 and IATF16949 certifications. We have introduced a series of advanced equipment, including 100 sets of precision hobbing machines, auto winding machines, and automatic lathes to ensure precise production and steady performance.
Frequently Asked Questions (FAQ)
What are the primary applications for the GM12-15BY dc gear motor?
This motor is designed for small-diameter, low-noise, and high-torque applications. It is widely used in robotics, precision medical instruments, smart home appliances, and various automatic control mechanisms.
What gearbox reduction ratios are supported?
The GM12-15BY series offers a wide selection of reduction ratios including 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, and 380, enabling optimal balance between output speed and torque.
What is the rated voltage and step angle of this stepper gear motor?
It operates on a rated voltage of 5VDC and features a standard step angle of 18° with 2 phases, providing precise rotational step movements.
How much torque does the GM12-15BY motor provide?
Depending on the chosen gear ratio, the holding torque ranges from 500g.cm (for the 1/30 ratio) up to 1050g.cm (for the 1/110 ratio). The maximum gear motor design can provide reliability up to 0.05Nm torque.
What quality standards do your manufacturing facilities follow?
The manufacturing facility is fully certified under ISO9001:2015 and IATF16949, utilizing advanced automatic hobbing and winding machines to ensure high-performance reliability.
