TT Motor China Supplier 5v Geared Dc Motor With Encoder Mini Stepper Motor
Product Description

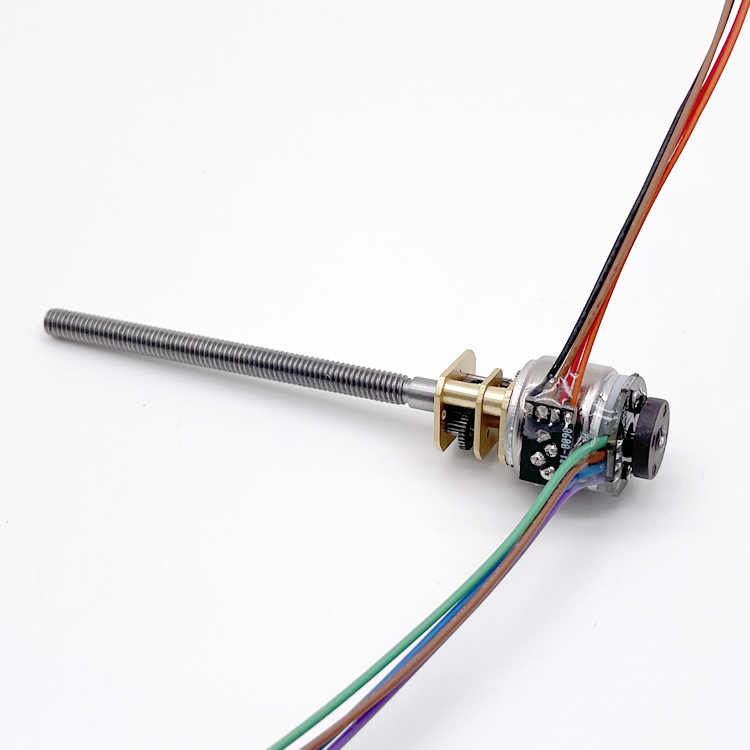

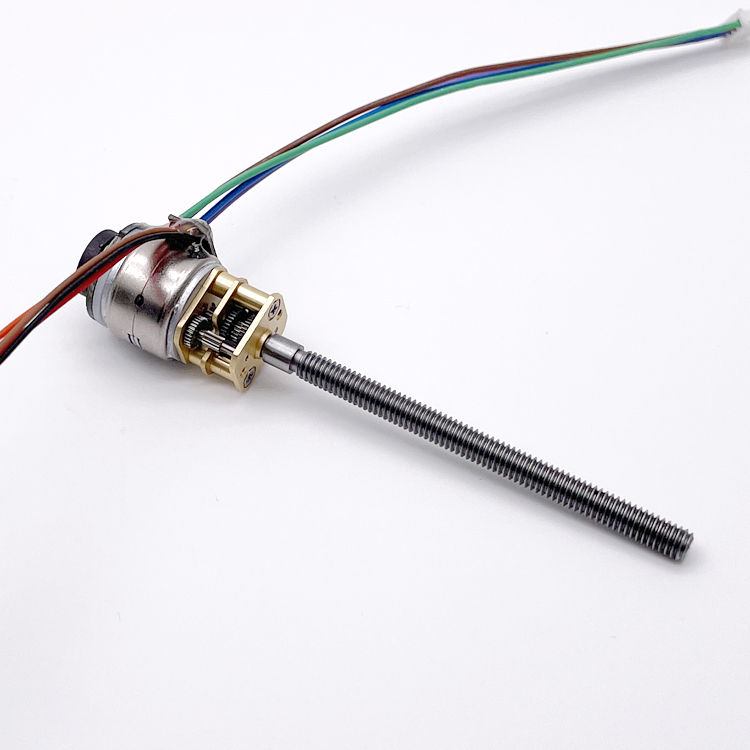

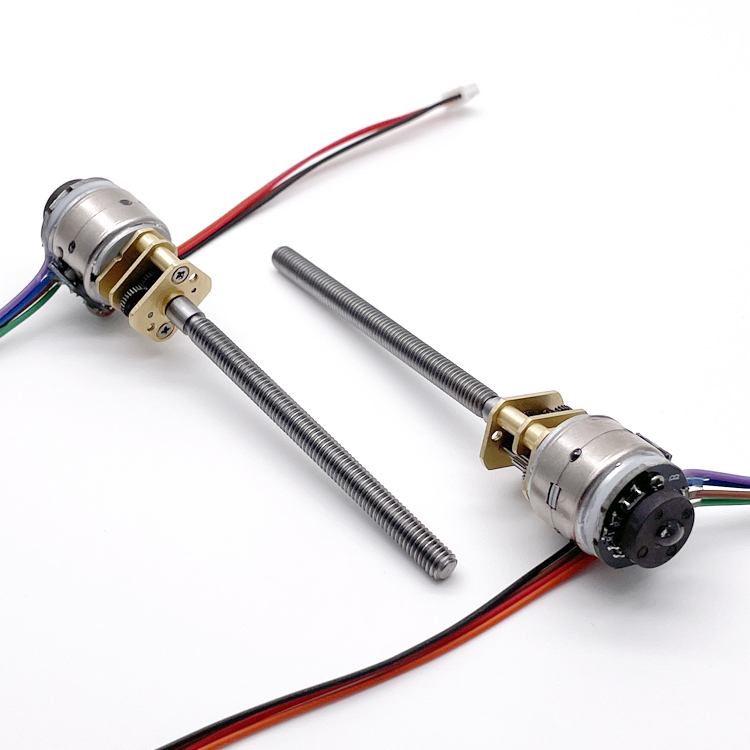

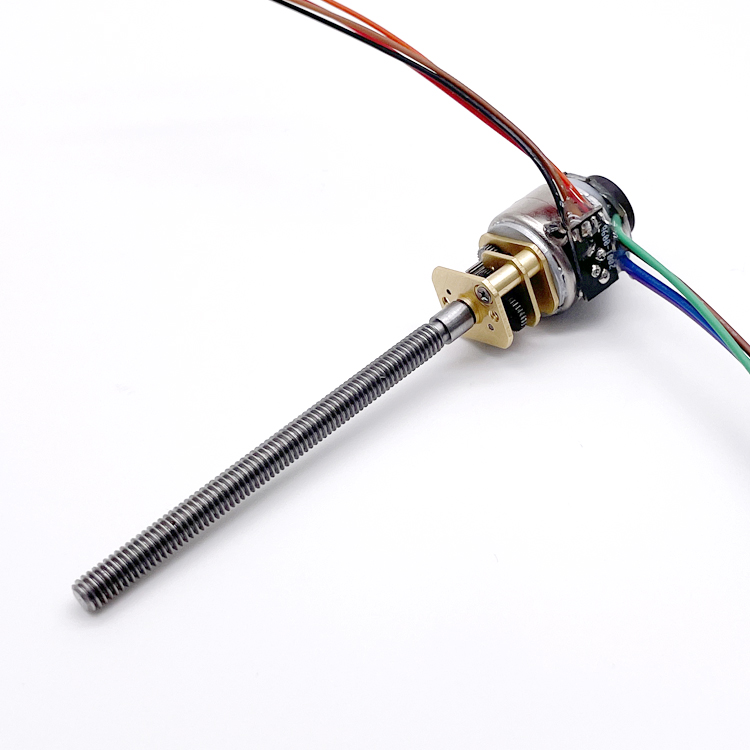

5V Geared DC Motor with Encoder Mini Stepper Motor
🚀 Main Features
- 12*10mm gearbox plus 15mm stepping motor
- Small size dc gear motor with low speed and big torque
- 12mm gear motor provide 0.05Nm torque and more reliable
- Suitable for small diameter, low noise and big torque applications
- Reduction ratios: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380
Technical Specifications
| Model | Electrical Parameters | Mechanical Performance |
|---|---|---|

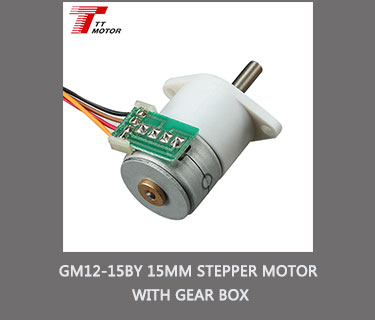

| GM12-15BY-30 | Rated Voltage: 5VDC Resistance: 10Ω Phase: 2 Step Angle: 18° |
Gear Ratio: 1/30 Holding Torque: 500g.cm Current: 500mA Pull in Rate: 800pps |
| GM12-15BY-50 | Rated Voltage: 5VDC Resistance: 10Ω Phase: 2 Step Angle: 18° |
Gear Ratio: 1/50 Holding Torque: 700g.cm Current: 500mA Pull in Rate: 850pps |
| GM12-15BY-110 | Rated Voltage: 5VDC Resistance: 10Ω Phase: 2 Step Angle: 18° |
Gear Ratio: 1/110 Holding Torque: 1050g.cm Current: 500mA Pull in Rate: 850pps |
Product Application
Our motors are ideal for high-precision and compact environments:
Automatic door operators
Electrical controlled valves
Medical service & Oxygen machines
Robots & Grass cutters
Cameras & Electric curtains
Business Machines (Vending/ATM)
Quality Assurance & Certifications
Certified with ISO9001 and SGS. We maintain strict quality control to ensure long-lasting and dependable performance.
Our Production Facility
Specializing in micro motors and gear motors since 2000. With decades of expertise, our products are widely exported to international markets, serving industry leaders in electronics and home appliances.
Trusted By Major Clients
We work with global industry leaders including NIKE, FLEXTRONICS, and STANLEY.
Packing & Delivery
Estimated Shipping Time:
- DHL: 3-5 working days
- UPS/TNT: 5-7 working days
- FedEx: 7-9 working days
- EMS: 12-15 working days
Customer Feedback
Frequently Asked Questions
How to place an order?
Send us an inquiry → Receive our quotation → Negotiate details → Confirm sample → Sign contract/Deposit → Mass production → Balance/Delivery.
Can I order samples?
Yes, samples are available. Please contact us for details. Sample fees are typically refunded upon placing a formal mass production order.
What shipping methods are available?
We offer DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight. Other shipping ways can be arranged upon request.
What is the typical production and shipping time?
Delivery time depends on the order quantity, usually taking 15-25 working days for production.
What are the accepted payment methods?
We accept T/T, PayPal, and other major payment methods. A 30-50% deposit is required, with the balance paid before shipping.
What should I do if my package has missing products?
Please contact our support team immediately. We will verify your order contents and resolve the issue as quickly as possible.
