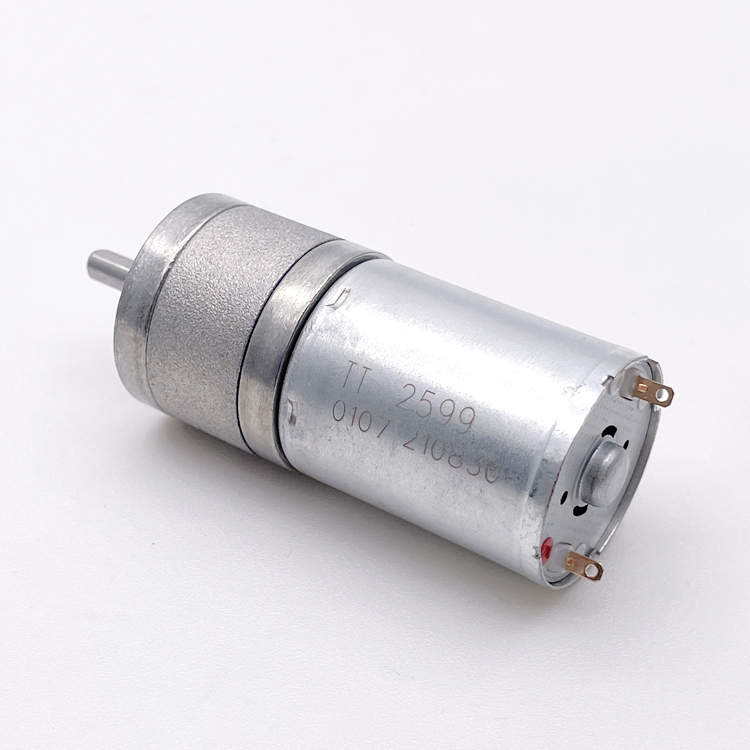

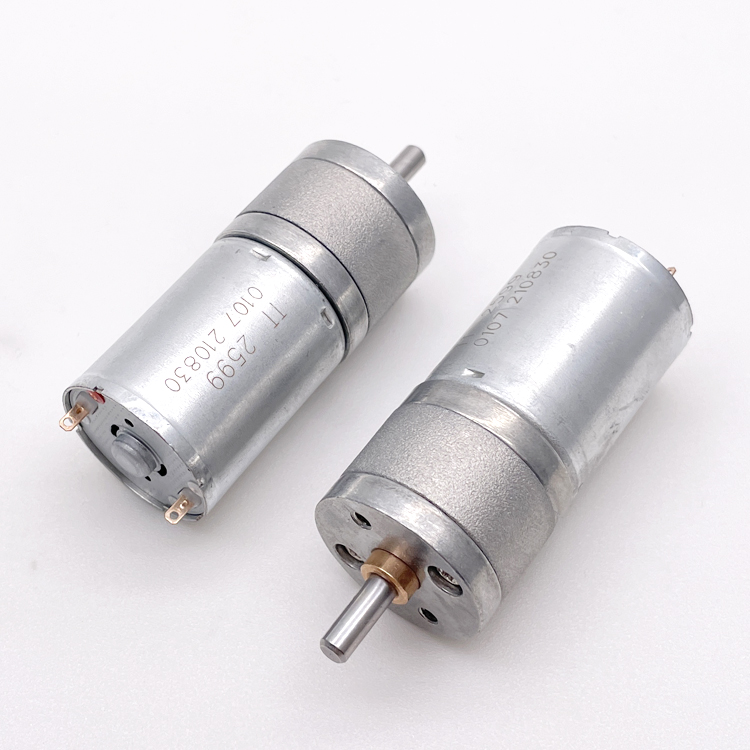

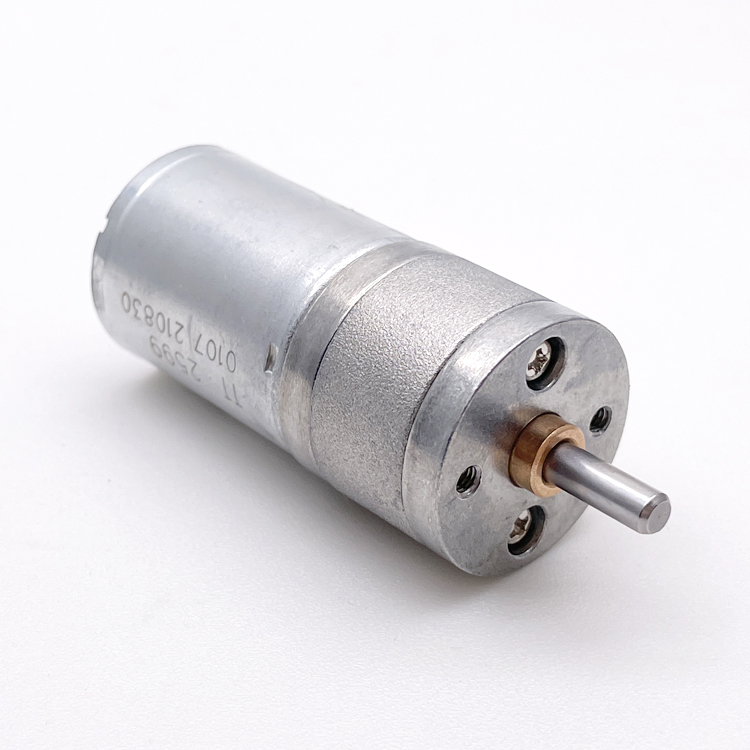

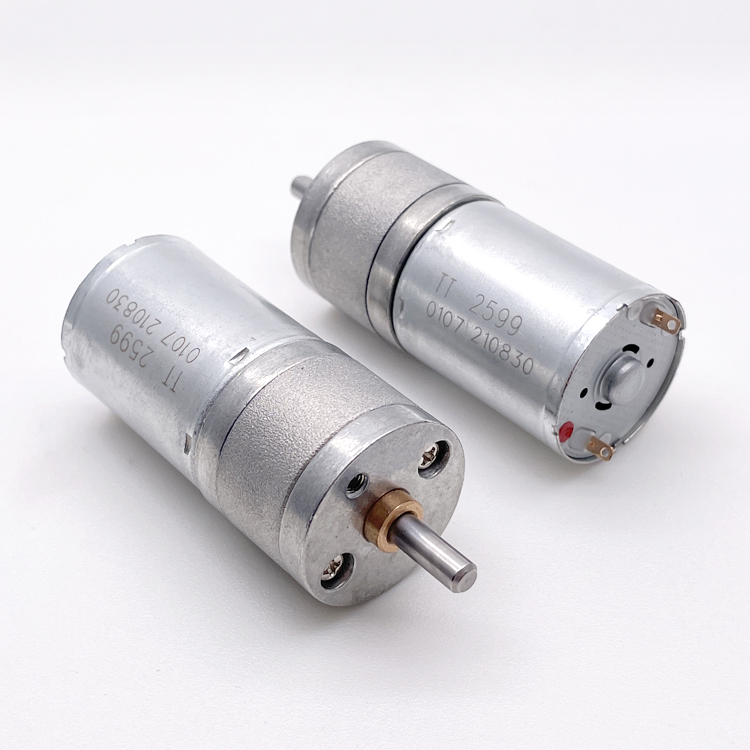

GM25-370CA Electric 12v Encoder Dc Gear Motor for Automatic Toys
Product Description
GM25-370CA Electric 12V Encoder DC Gear Motor
High-performance permanent magnet DC gear motor designed for automatic toys, precision controls, and automated devices.
Product Application
- ✦Automatic door operators
- ✦Automatic energy saving bath systems
- ✦Electrical controlled valves
- ✦Oxygen machines and medical devices
- ✦Optical equipment
- ✦Automat cordless power tools and lighting
Main Features
- ✔25mm gearbox plus 370 & 320 permanent magnet DC motor
- ✔Small size DC gear motor with low speed and big torque capabilities
- ✔25mm gear motor provides reliable 0.5Nm torque
- ✔Optimized design suitable for small diameter, low noise, and big torque applications

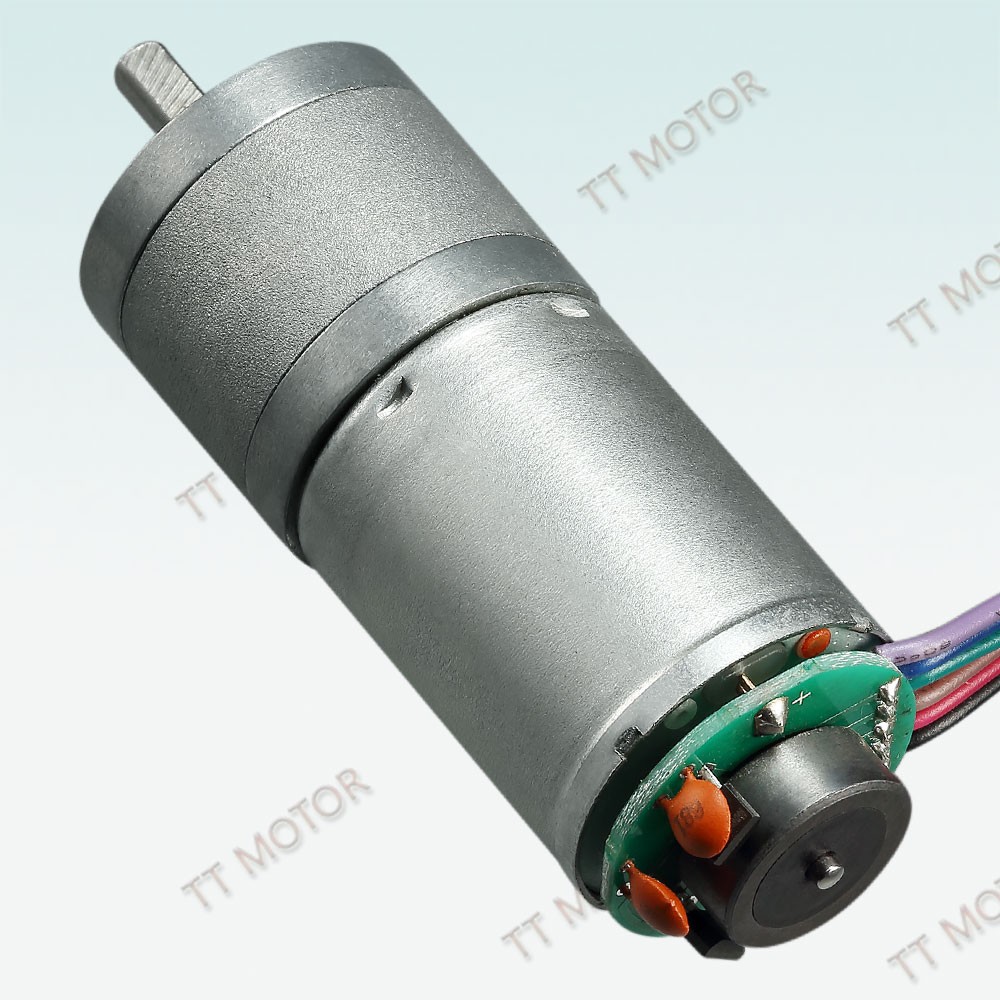

- ✔Supports encoder integration (11ppr)
- ✔Reduction ratio options: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499

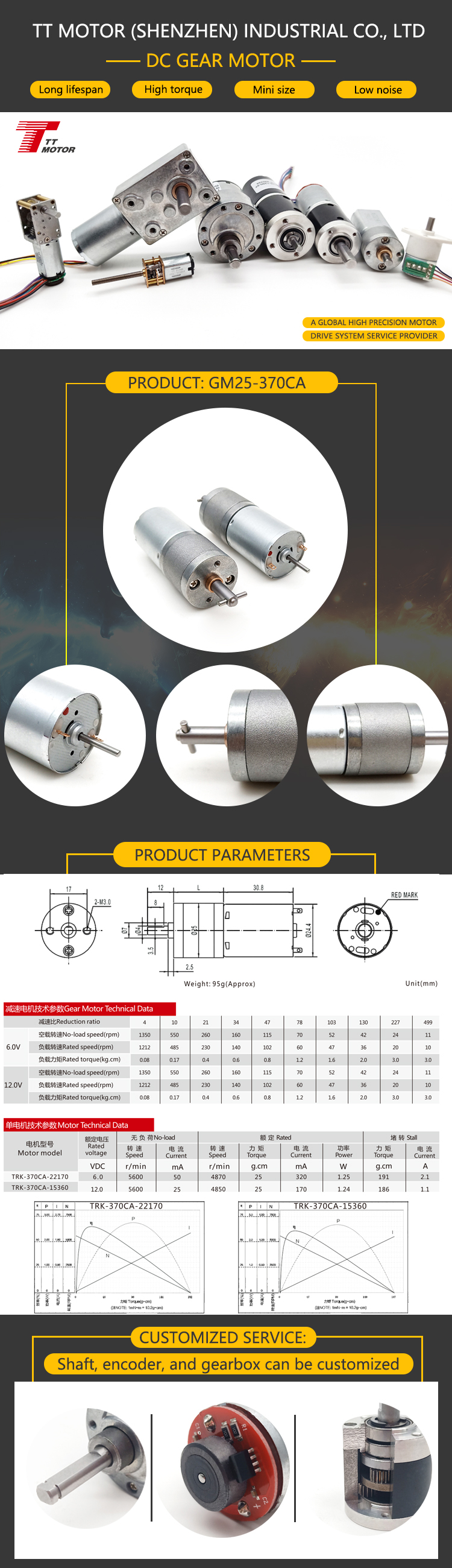

Model Specifications (Model: GM25-370CA)
| Model | Rated Voltage | No-load Speed | No-load Current | Rated Speed | Rated Torque | Rated Current | Output Power | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|---|---|
| TRK-370CA-22170 | 6VDC | 5600r/min | 50mA | 4800r/min | 24g.cm | 300mA | 1.18W | 186g.cm | 2.1A |
| TRK-370CA-15360 | 12VDC | 5600r/min | 25mA | 4800r/min | 24g.cm | 160mA | 1.18W | 186g.cm | 1.06A |
| TRK-370CA-12560 | 12VDC | 3700r/min | 20mA | 3000r/min | 20g.cm | 90mA | 0.62W | 125g.cm | 0.6A |
Gearbox Reduction Ratio & Performance Data
GM25-370CA-22170-xxx
| Parameter | Value 1 | Value 2 | Value 3 | Value 4 | Value 5 | Value 6 | Value 7 | Value 8 | Value 9 |
|---|---|---|---|---|---|---|---|---|---|
| Reduction ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
| Length mm | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load speed rpm | 1280 | 510 | 245 | 150 | 110 | 68 | 50 | 42 | 24 |
| Rated speed rpm | 1200 | 480 | 230 | 137 | 102 | 62 | 47 | 37 | 21 |
| Rated torque kg.cm | 0.06 | 0.15 | 0.3 | 0.5 | 0.7 | 1.1 | 1.5 | 1.7 | 2.7 |
| Max. tolerance torque kg.cm | 0.45 | 1.1 | 2.3 | 3.9 | 5.2 | 10 | 10 | 10 | 10 |
GM25-370CA-15360-xxx
| Parameter | Value 1 | Value 2 | Value 3 | Value 4 | Value 5 | Value 6 | Value 7 | Value 8 | Value 9 |
|---|---|---|---|---|---|---|---|---|---|
| Reduction ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
| Length mm | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load speed rpm | 1280 | 510 | 245 | 150 | 110 | 68 | 50 | 42 | 24 |
| Rated speed rpm | 1200 | 480 | 230 | 137 | 102 | 62 | 47 | 37 | 21 |
| Rated torque kg.cm | 0.06 | 0.15 | 0.3 | 0.5 | 0.7 | 1.1 | 1.5 | 1.7 | 2.7 |
| Max. tolerance torque kg.cm | 0.45 | 1.1 | 2.3 | 3.9 | 5.2 | 10 | 10 | 10 | 10 |
GM25-370CA-12560-xxx
| Parameter | Value 1 | Value 2 | Value 3 | Value 4 | Value 5 | Value 6 | Value 7 | Value 8 | Value 9 |
|---|---|---|---|---|---|---|---|---|---|
| Reduction ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 478 |
| Length mm | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 27 |
| No-load speed rpm | 850 | 340 | 165 | 100 | 75 | 48 | 34 | 27 | 7.5 |
| Rated speed rpm | 750 | 300 | 145 | 86 | 64 | 38 | 29 | 23 | 6.3 |
| Rated torque kg.cm | 0.05 | 0.12 | 0.26 | 0.4 | 0.6 | 0.9 | 1.2 | 1.4 | 2.5 |
| Max. tolerance torque kg.cm | 0.3 | 0.75 | 1.5 | 2.6 | 3.5 | 10 | 10 | 10 | 10 |
Packaging & Shipping
| Model Reference | Case Pack (pcs) | Carton Size | Carton Gross Weight |
|---|---|---|---|
| GM12-N20VA | 840 | 41.5 * 34.5 * 18.5 CM | 10.5kg |
Typical Applications
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk.
Camera and Optical:Video, Cameras, Projectors.
Medical:Urine Analyzer, Blood Sugar Analyzer, Injector.
Lawn and Garden:Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Certifications
Customer Reviews
Our Customers
Frequently Asked Questions
QWhat is the main application of the GM25-370CA motor?
The GM25-370CA motor is widely utilized in automatic door operators, automated toys, energy-saving bath devices, electrical control valves, oxygen machines, optical equipment, and cordless power tools.
QCan this DC gear motor be integrated with an encoder?
Yes, the GM25-370CA series DC gear motors can be equipped with an 11ppr encoder for precise speed, positioning, and feedback control.
QWhat voltage options are available for the GM25-370CA motor?
The motor is standardly available in 6VDC and 12VDC ratings, covering various rated load speeds, currents, and torque configurations.
QWhat reduction ratios are supported by this gearbox?
The 25mm gearbox supports a wide range of reduction ratios including 4, 10, 21, 34, 45, 47, 78, 103, 130, 227, 478, and others, allowing you to optimize torque and RPM output.
QIs the GM25-370CA gear motor suitable for low noise requirements?
Yes. With its 25mm diameter precision gearbox structure, it is designed for low speed and high torque operations, keeping noise levels low for applications in medical and camera gear.
