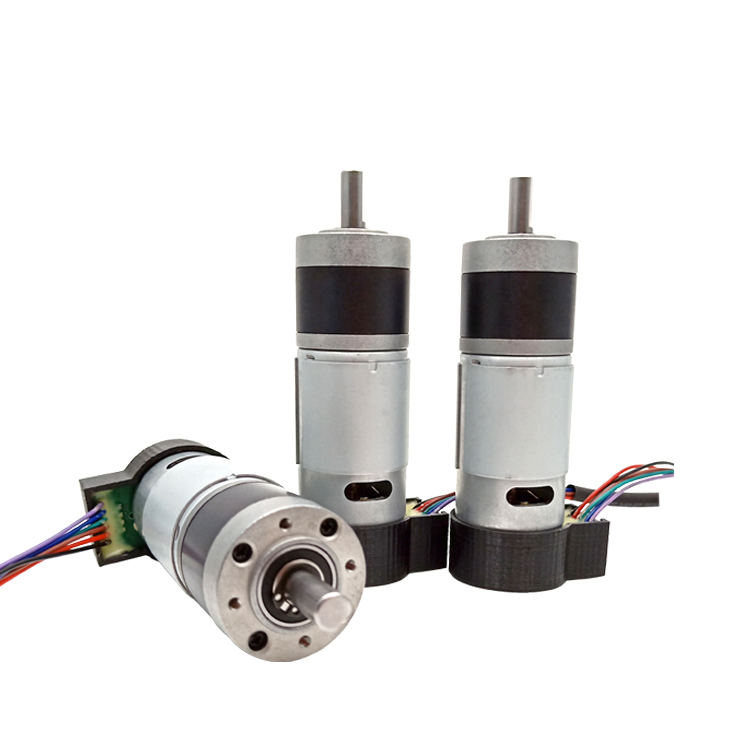

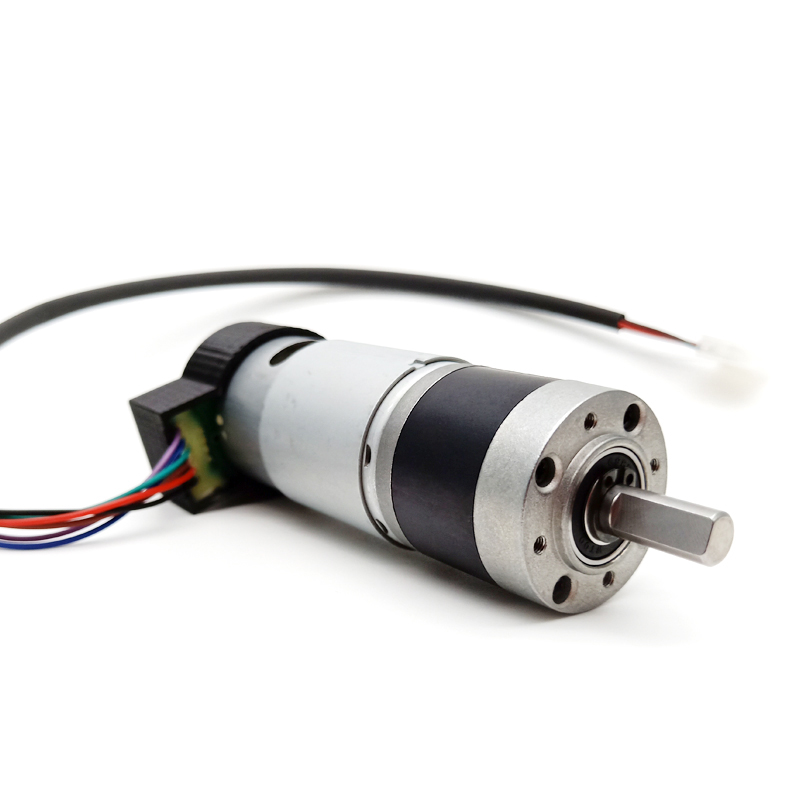

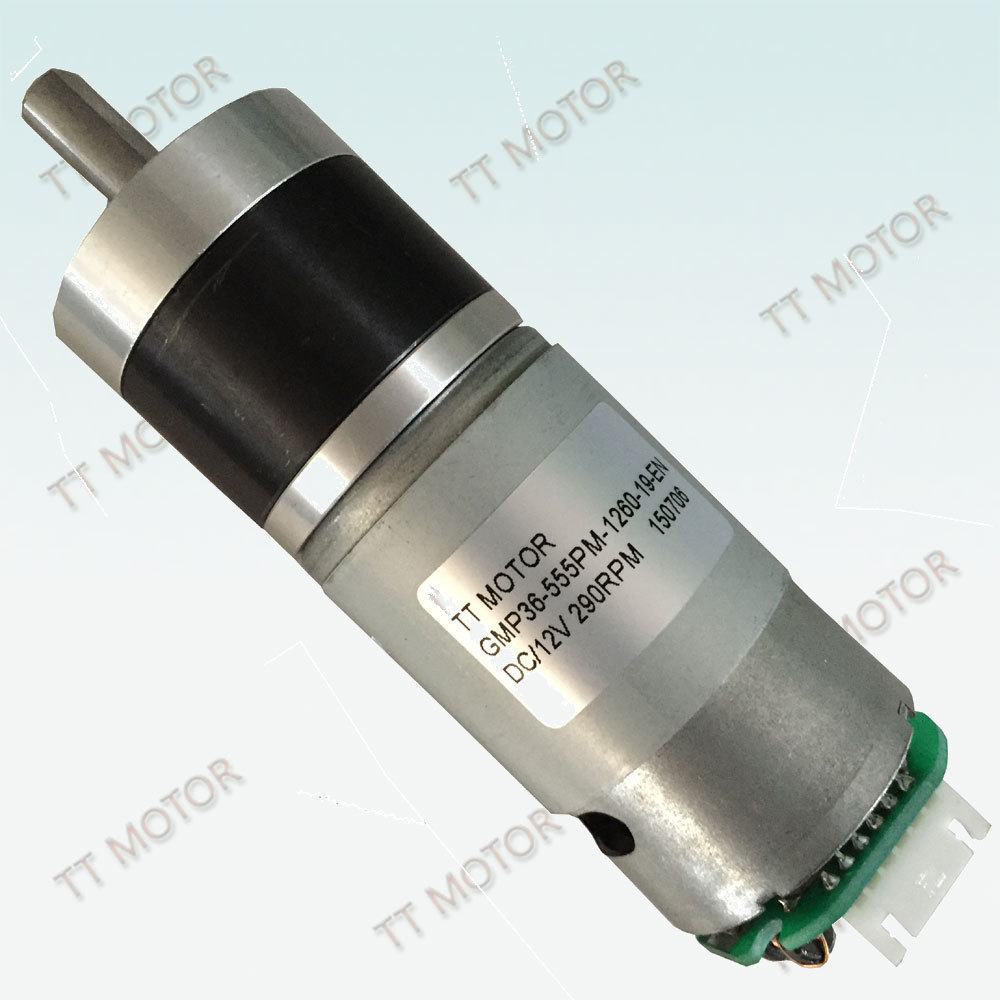

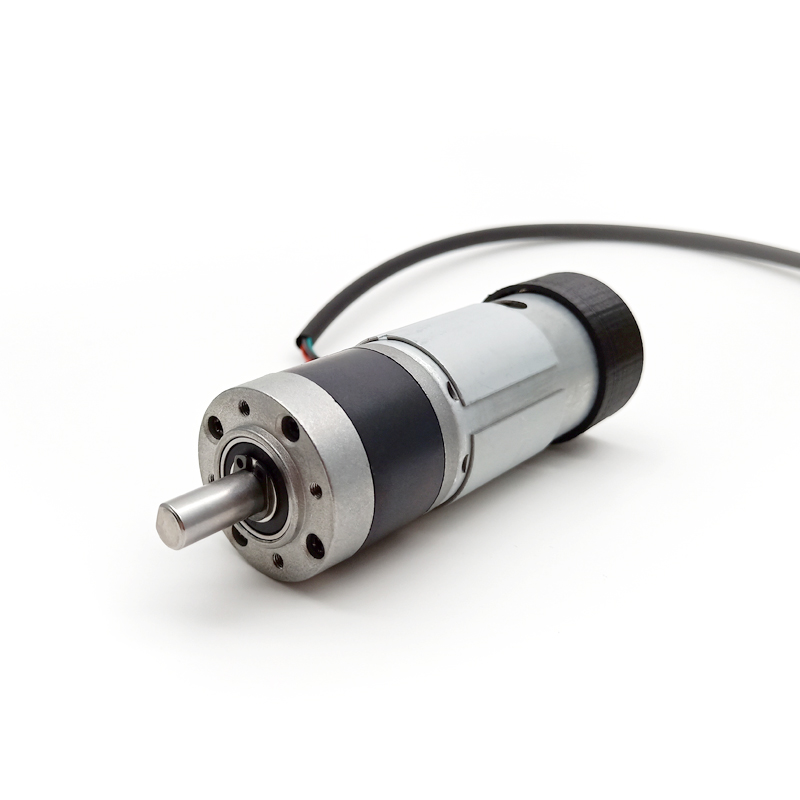

GMP36-555PM-EN Electric Motor Dc 24v Planetary Gear Motor Encoder
Product Description
GMP36-555PM-EN Electric Motor DC 24V Planetary Gear Motor Encoder
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, 12V DC gear motor, optical equipment, automat cordless power tool, lighting, and more.
Technical Specifications
| Model: Gear Motor GMP36-555PM | |||
|---|---|---|---|
| TTRS-555PM-1233 | Rated voltage: 12VDC | Rated speed: 2800r/min | Output power: 5.7W |
| No-load speed: 3300r/min | Rated torque: 200g.cm | Stall torque: 1150g.cm | |
| No-load current: 200mA | Rated current: 1000mA | Stall current: 5.5A | |
| TTRS-555PM-1260 | Rated voltage: 12VDC | Rated speed: 5250r/min | Output power: 16W |
| No-load speed: 6000r/min | Rated torque: 290g.cm | Stall torque: 2200g.cm | |
| No-load current: 300mA | Rated current: 2400mA | Stall current: 15.0A | |
Main Features
- 36mm Planetary reducer with 5 series carbon brush motor or brushless motor options.
- Small size DC gear motor with low speed and exceptionally high torque (up to 3.0Nm).
- Reliable performance suitable for small diameter and low noise applications.
- Compatible with encoders (11pr).
- Multiple Reduction Ratios: 4, 14, 19, 51, 71, 100, 139, 189, 264, 369, 516, 720.
Performance Ratios (GMP36-555PM Series)
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
| No-load speed (rpm) | 750 | 160 | 60 | 32 | 23 | 17 | 12 | 9 | 6 |
| Rated torque (kg.cm) | 0.64 | 2.7 | 6 | 12 | 15 | 21 | 26 | 30 | 30 |
Industry Applications
Business Machines
Vending Machines, Printers, ATM, Copiers and Scanners
Camera & Optical
Video Cameras, Projectors, Security Systems
Lawn & Garden
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers
Certifications & Quality Control
ISO9001, SGS, National High-tech Enterprise Certifications.
Packing & Logistics
Shipping Estimates: DHL (3-5 days), UPS/TNT (5-7 days), FedEx (7-9 days), EMS (12-15 days), Sea Freight (Depends on destination).
Frequently Asked Questions
Q: What is the typical ordering process?
A: Send inquiry → Receive quotation → Negotiate details → Confirm sample → Sign contract/deposit → Mass production → Cargo ready → Balance/delivery → Further cooperation.
Q: Can I request a sample before placing a formal order?
A: Yes, samples are available. Please note that sample fees are charged upfront but are fully refundable once a formal mass production order is placed.
Q: What shipping methods are available?
A: We support DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight. If you require a specific alternative carrier, please let us know.
Q: What is the lead time for production and shipping?
A: Production time generally ranges from 15-25 working days, depending on the order quantity and complexity.
Q: What payment methods do you accept?
A: We accept T/T, PayPal, and other standard payment methods. Usually, a 30-50% deposit is required, with the balance paid before shipping.
Q: How do you handle missing or damaged products in a package?
A: Please contact our support team immediately. We will verify your order against the package contents and resolve any discrepancies as quickly as possible.
