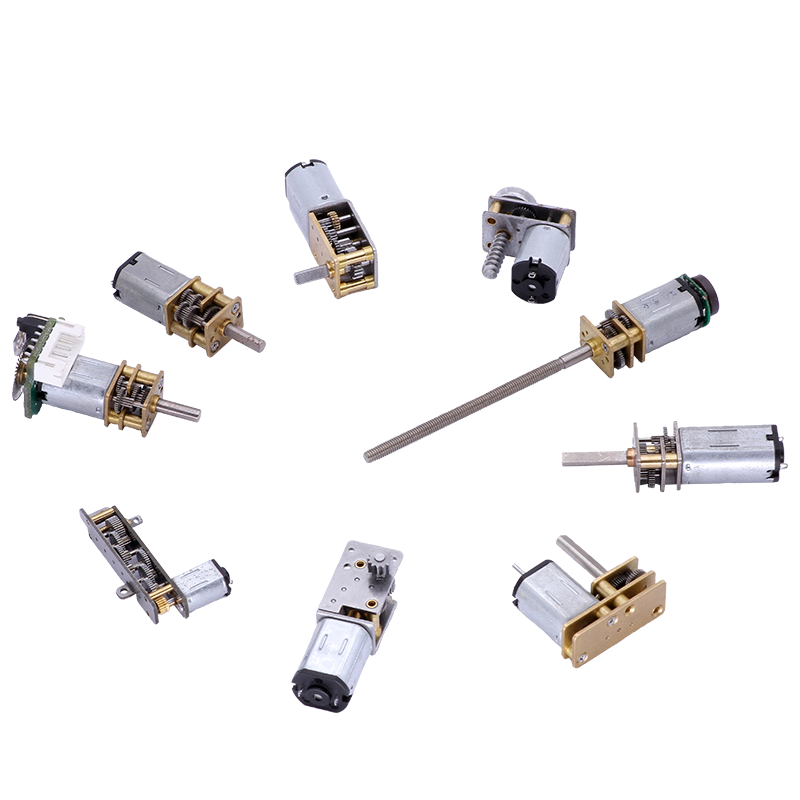

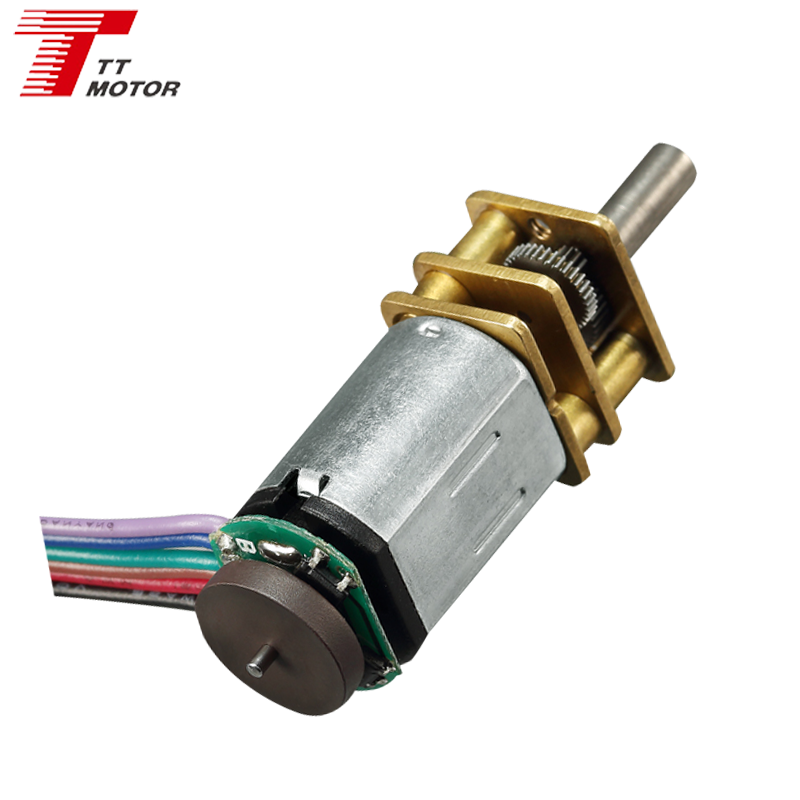

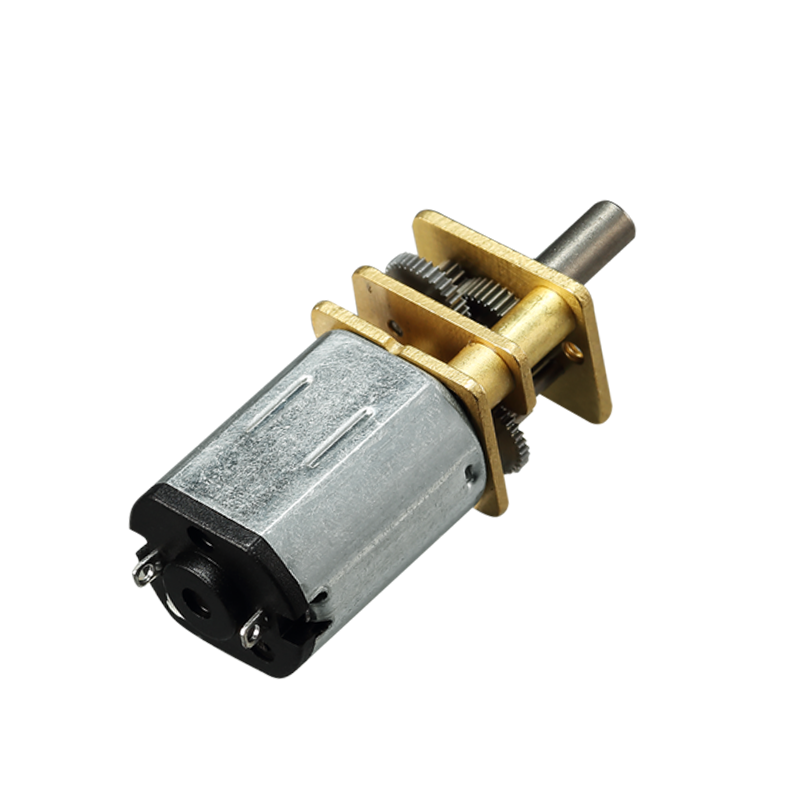

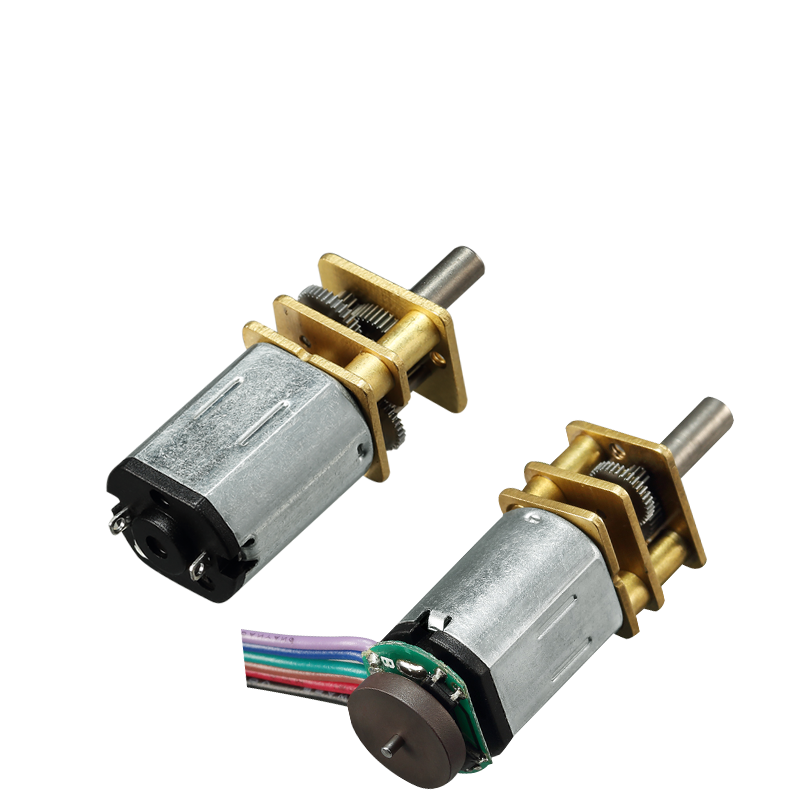

GM12-N20VA DC 6v Mini Metal N20 Gear Motor With Encoder
Product Description
GM12-N20VA DC 6v Mini Metal N20 Gear Motor with Encoder
Main Features

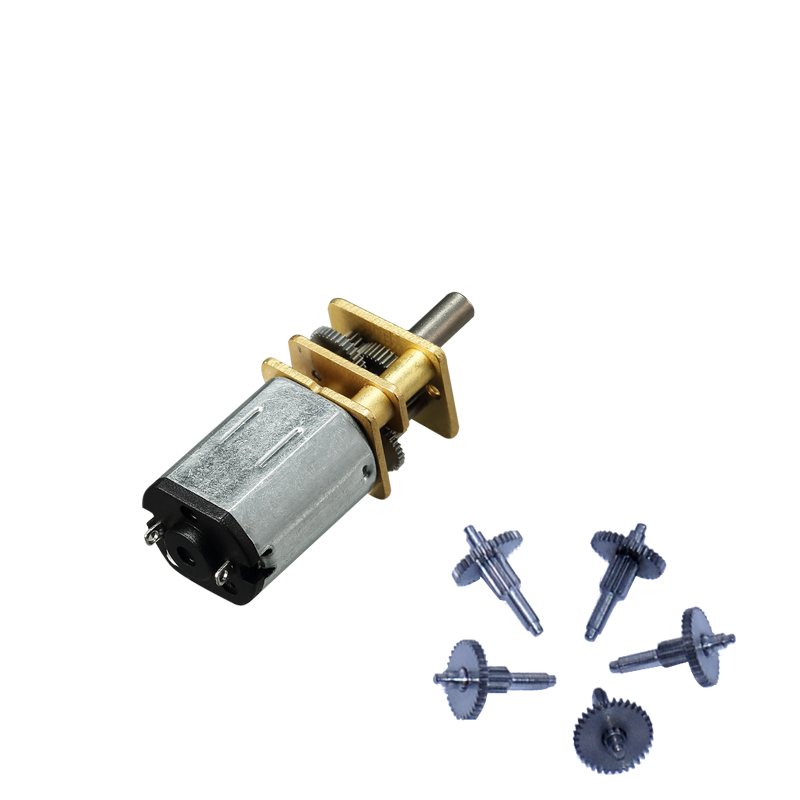

- 12*10 mm gearbox plus N20 & N30 permanent magnet dc motor
- Small size dc gear motor with low speed and big torque
- 12mm gear motor provide 0.1Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application
- DC Gear motors can match encoder, 3ppr
- Reduction ratio: 3、5、10、20、30、50、63、100、150、210、250、298、380、1000
Model Parameters: Motor GM12-N20VA
| Model | Voltage & Power | No-Load Specs | Rated Specs | Stall Specs |
|---|---|---|---|---|
| TFF-N20VA-13110 | Rated voltage: 2.4V DC Output power: 0.31W |
No-load speed: 14800r/min No-load current: 60mA |
Rated speed: 12000r/min Rated torque: 2.5g.cm Rated current: 200mA |
Stall torque: 13g/cm Stall current: 1.20A |
| TFF-N20VA-09220 | Rated voltage: 5V DC Output power: 0.31W |
No-load speed: 14800r/min No-load current: 30mA |
Rated speed: 12000r/min Rated torque: 2.5g.cm Rated current: 120mA |
Stall torque: 13g/cm Stall current: 0.52A |
| TFF-N20VA-05430 | Rated voltage: 12V DC Output power: 0.35W |
No-load speed: 16000r/min No-load current: 15mA |
Rated speed: 12500r/min Rated torque: 3.0g.cm Rated current: 60mA |
Stall torque: 13g/cm Stall current: 0.25A |
Performance Curve & Gearbox Details
GM12-N20VA-13110-xxx Specifications
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed rpm | 1450 | 470 | 285 | 145 | 96 | 69 | 58 | 50 | 38 |
| Rated speed rpm | 1200 | 400 | 240 | 120 | 80 | 57 | 48 | 40 | 31 |
| Rated torque kg.cm | 0.015 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.37 | 0.45 | 0.5 |
| Max. tolerance torque kg.cm | 0.08 | 0.23 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
GM12-N20VA-09220-xxx Specifications
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed rpm | 1450 | 470 | 285 | 145 | 96 | 69 | 58 | 50 | 38 |
| Rated speed rpm | 1200 | 400 | 240 | 120 | 80 | 57 | 48 | 40 | 31 |
| Rated torque kg.cm | 0.015 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.37 | 0.45 | 0.5 |
| Max. tolerance torque kg.cm | 0.08 | 0.23 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
GM12-N20VA-05430-xxx Specifications
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed rpm | 1550 | 530 | 310 | 160 | 110 | 78 | 60 | 55 | 43 |
| Rated speed rpm | 1100 | 400 | 250 | 125 | 83 | 60 | 50 | 42 | 33 |
| Rated torque kg.cm | 0.02 | 0.05 | 0.08 | 0.18 | 0.27 | 0.37 | 0.45 | 0.5 | 0.5 |
| Max. tolerance torque kg.cm | 0.1 | 0.2 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
Product Applications
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Other Applications Overview
| Category | Applications | |||
|---|---|---|---|---|
| Business Machines | Vending Machines | Printers | ATM | Copiers and Scanners |
| Camera and Optical | Video | Cameras | Projectors | - |
| Lawn and Garden | Lawn Mowers | Snow Blowers | Trimmers | Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
