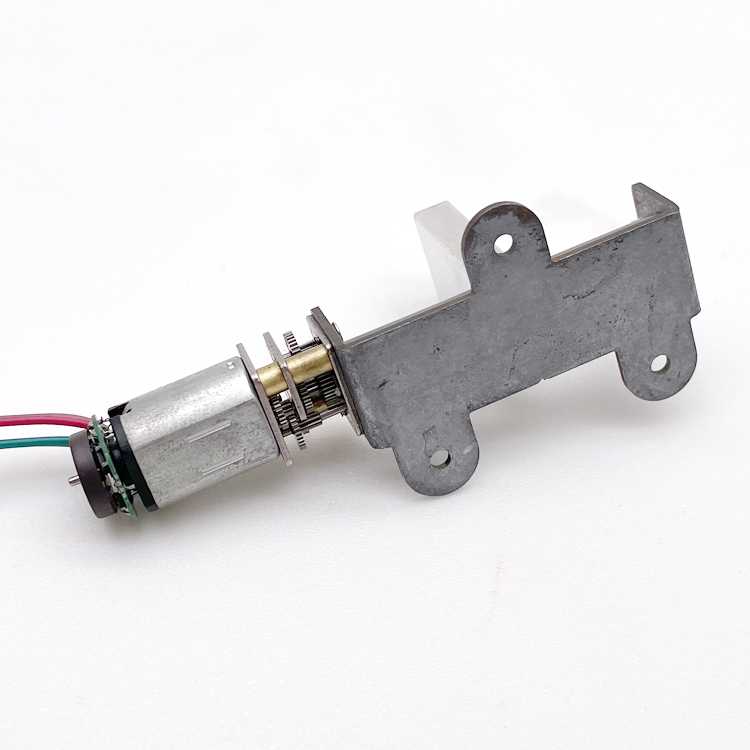

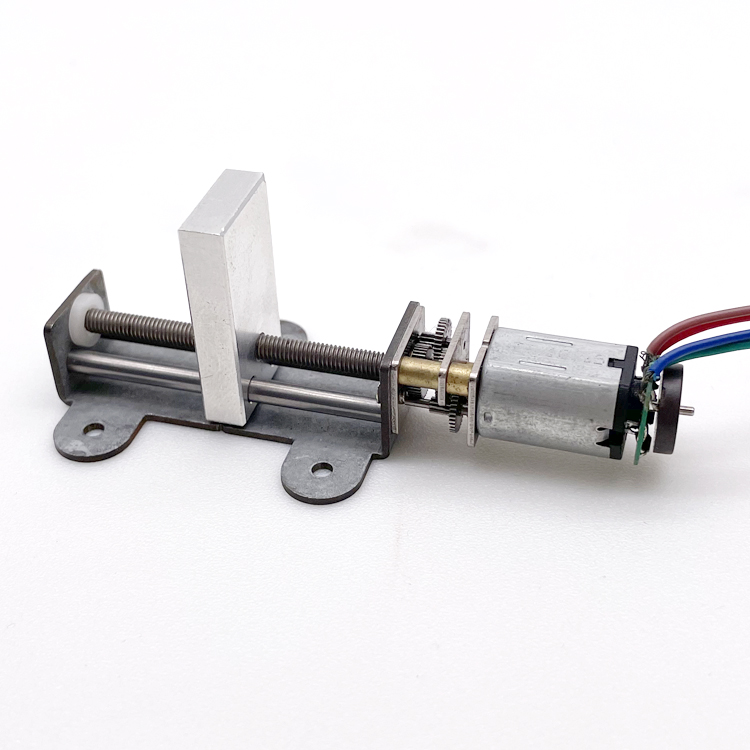

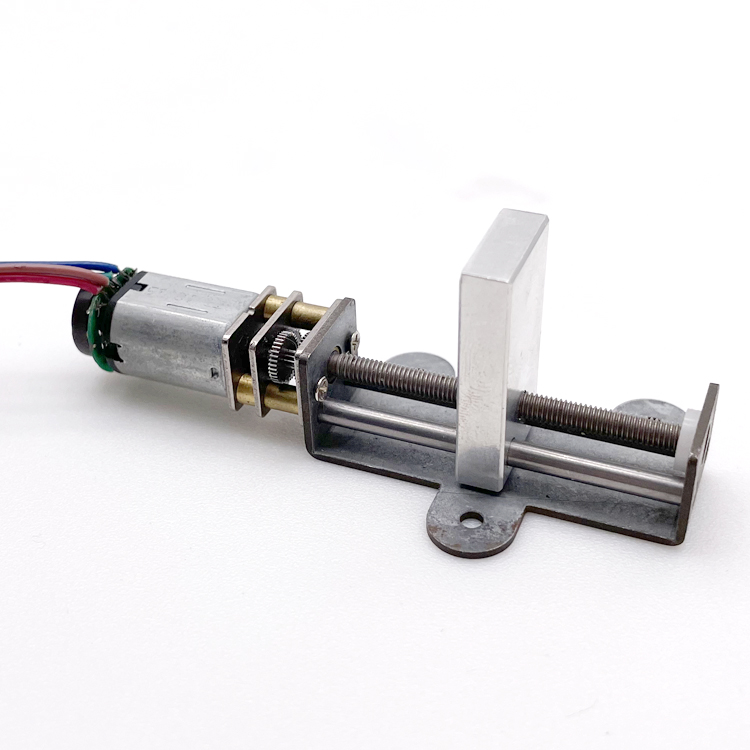

TT Motor 12v Electric Motors GM12-N20VA 1000 Ratio Spur Gear Motor for Sale
Product Description

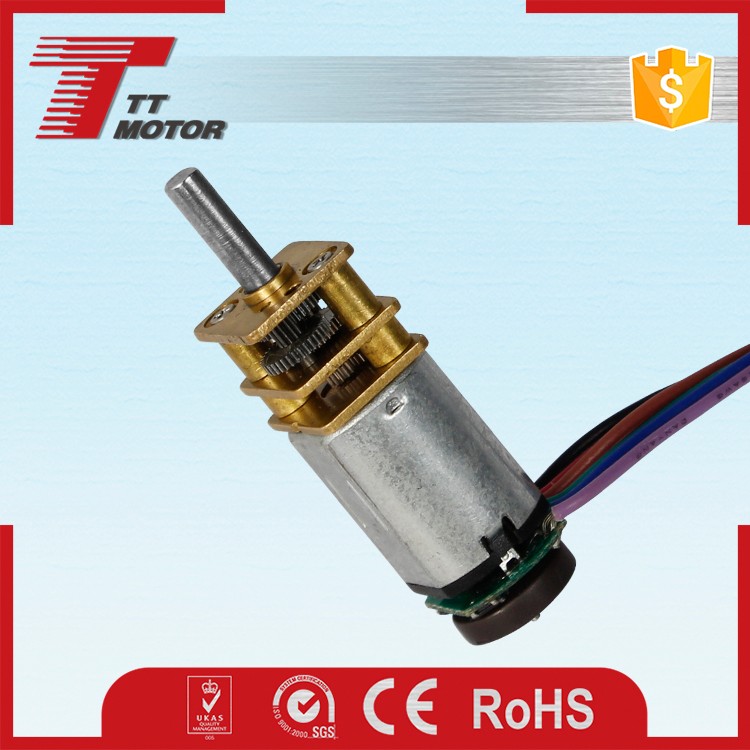

3V DC Mini Gear Motor 12mm Electric Motor with Encoder
Main Features
- 12*10 mm gearbox plus N20 & N30 permanent magnet dc motor
- Small size dc gear motor with low speed and big torque
- 12mm gear motor provide 0.1Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application

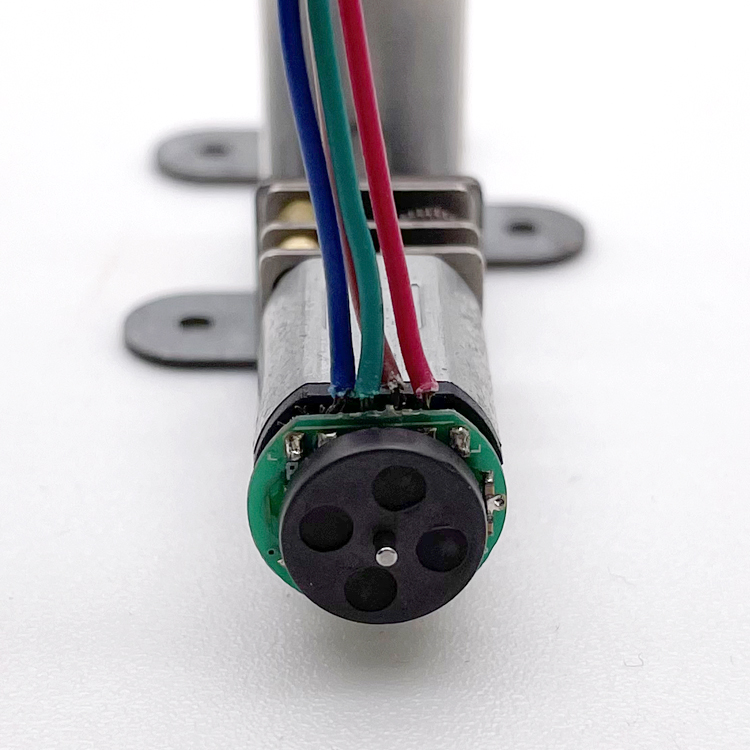

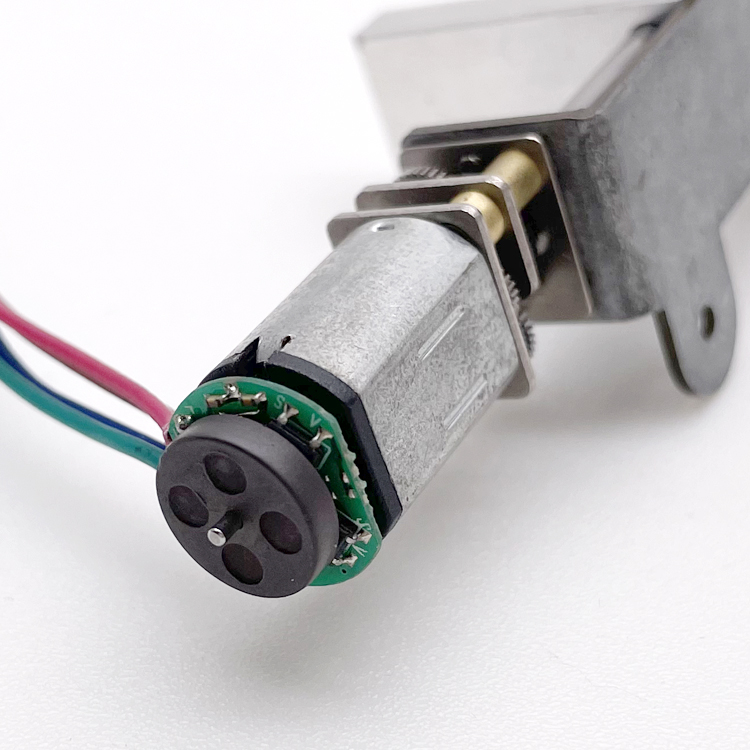

- DC Gear motors can match encoder, 3ppr
- Reduction ratio: 3、5、10、20、30、50、63、100、150、210、250、298、380、1000

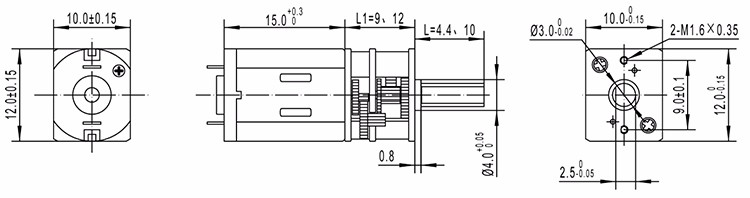

Model Specifications
| Model: Motor GM12-N20VA | |||
|---|---|---|---|
| TFF-N20VA-13110 | Rated voltage: 2.4V DC | Rated speed: 12000r/min | Output power: 0.31W |
| No-load speed: 14800r/min | Rated torque: 2.5g.cm | Stall torque: 13g/cm | |
| No-load current: 60mA | Rated current: 200mA | Stall current: 1.20A | |
| TFF-N20VA-09220 | Rated voltage: 5V DC | Rated speed: 12200r/min | Output power: 0.31W |
| No-load speed: 15000r/min | Rated torque: 2.5g.cm | Stall torque: 13g/cm | |
| No-load current: 30mA | Rated current: 120mA | Stall current: 0.6A | |
| TFF-N20VA-05430 | Rated voltage: 12V DC | Rated speed: 12500r/min | Output power: 0.35W |
| No-load speed: 16000r/min | Rated torque: 3.0g.cm | Stall torque: 13g/cm | |
| No-load current: 15mA | Rated current: 60mA | Stall current: 0.25A | |
GM12-N20VA-13110-EN Technical Parameters
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed rpm | 1450 | 470 | 285 | 145 | 96 | 69 | 58 | 50 | 38 |
| Rated speed rpm | 1200 | 400 | 240 | 120 | 80 | 57 | 48 | 40 | 31 |
| Rated torque kg.cm | 0.015 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.37 | 0.45 | 0.5 |
| Max. tolerance torque kg.cm | 0.08 | 0.23 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
GM12-N20VA-09220-EN Technical Parameters
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed rpm | 1480 | 490 | 290 | 150 | 98 | 70 | 60 | 50 | 38 |
| Rated speed rpm | 1220 | 405 | 245 | 122 | 81 | 57 | 48 | 40 | 31 |
| Rated torque kg.cm | 0.015 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.37 | 0.45 | 0.5 |
| Max. tolerance torque kg.cm | 0.08 | 0.23 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
GM12-N20VA-05430-EN Technical Parameters
| Reduction ratio | 10 | 30 | 50 | 100 | 150 | 210 | 250 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load speed rpm | 1550 | 530 | 310 | 160 | 110 | 78 | 60 | 55 | 43 |
| Rated speed rpm | 1100 | 400 | 250 | 125 | 83 | 60 | 50 | 42 | 33 |
| Rated torque kg.cm | 0.02 | 0.05 | 0.08 | 0.18 | 0.27 | 0.37 | 0.45 | 0.5 | 0.5 |
| Max. tolerance torque kg.cm | 0.1 | 0.2 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

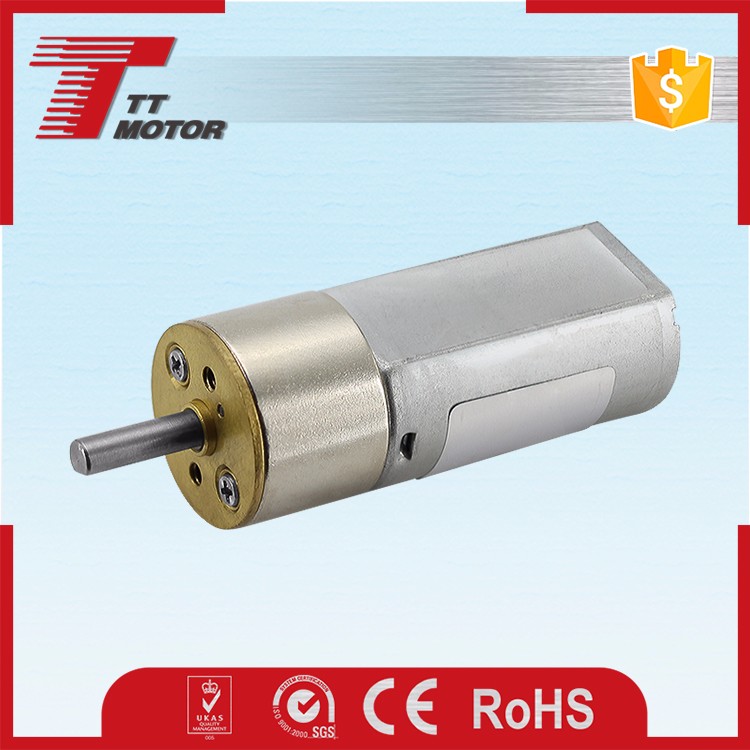

Related Products
Packing & Delivery
Packaging: single carton packing, 500 pieces per box.
Shipping Methods & Estimates:
- DHL: 3-5 working days
- UPS: 5-7 working days
- TNT: 5-7 working days
- FedEx: 7-9 working days
- EMS: 12-15 working days
- China Post: Dependent on destination
- Sea Freight: Dependent on destination

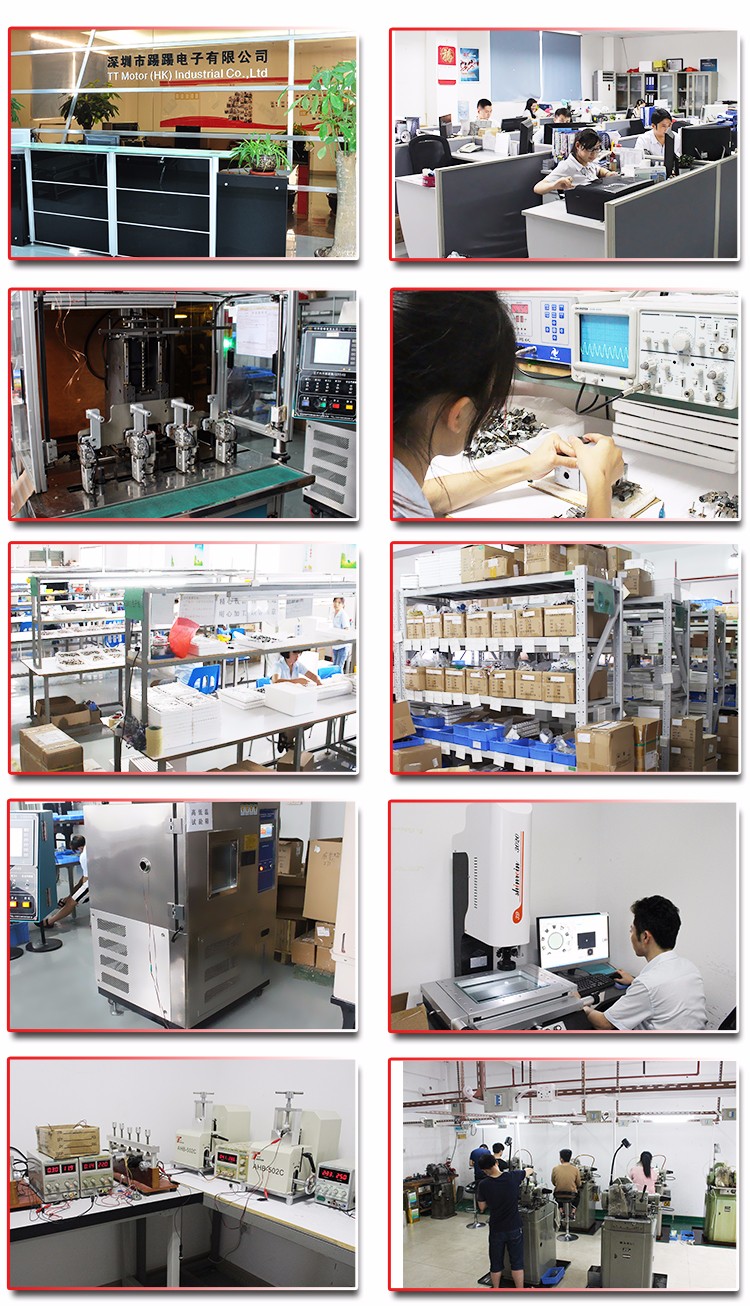

Who We Are
